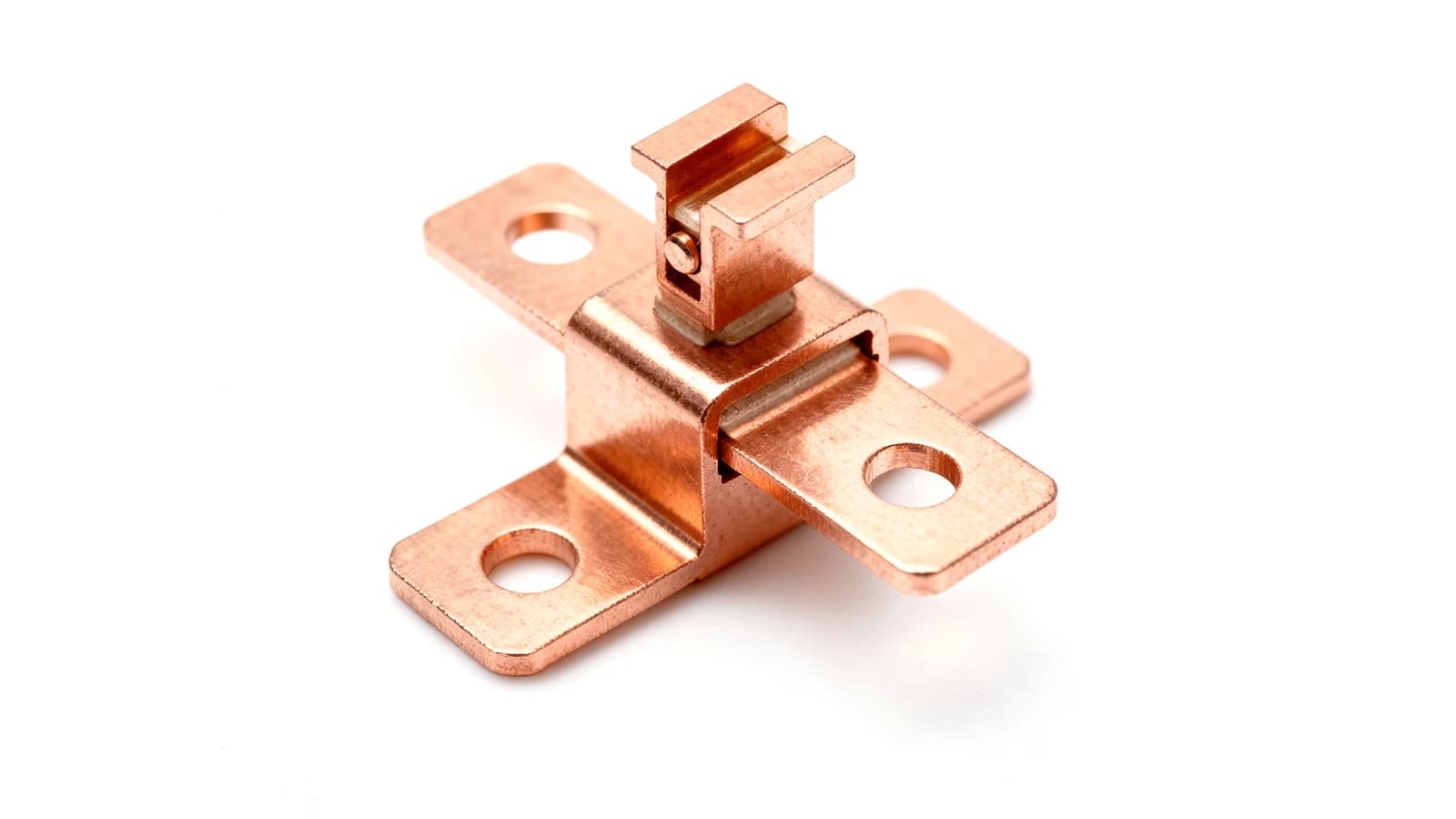

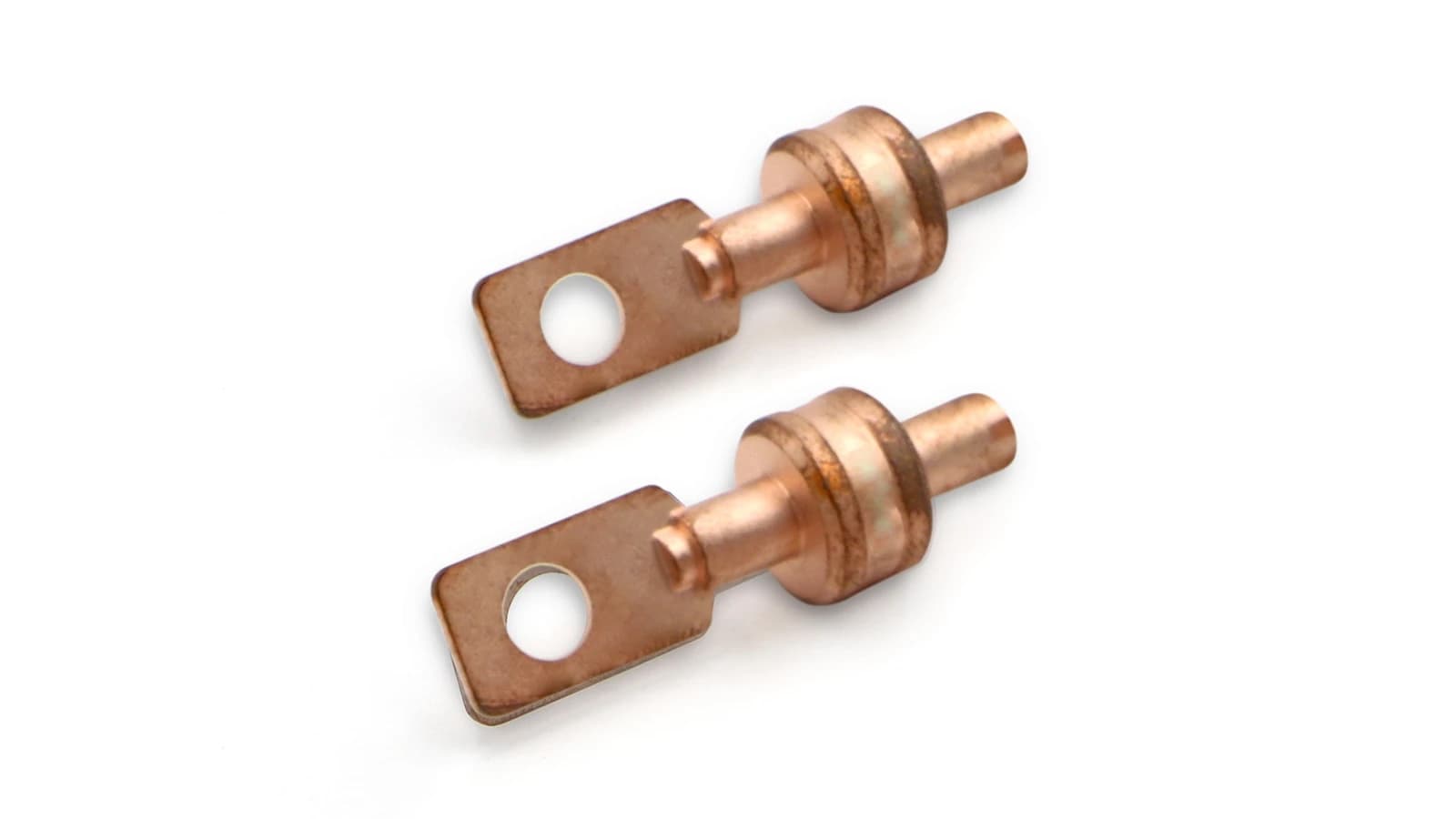

Copper Alloy Electrical Contacts

Copper alloy electrical contacts for applications demanding high conductivity, mechanical robustness and precision geometry — MIM enables miniaturized multi-tier contacts, slots and micro-features with tight tolerances and low material loss.

Materials: Copper-based MIM alloys
Features: Superior conductivity with minimal resistive loss, wear and oxidation resistance, efficient thermal management, high-volume repeatability
Application: Electrical connectors, automotive battery/ECU/sensor interfaces, telecommunications RF and data systems, consumer electronics.

Request a Quote Product Catalog (PDF)

FAQ

Frequently Asked Questions

What materials and process are used for Copper Alloy Electrical Contacts?

Copper Alloy Electrical Contacts is made from Copper-based MIM alloys and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.

What tolerances can Copper Alloy Electrical Contacts hold?

Typical as-sintered dimensional tolerance is ±0.3–0.5% of the dimension. Tighter tolerances are achievable with secondary sizing or machining, agreed per part during quoting.

What is the MOQ and lead time for Copper Alloy Electrical Contacts?

MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
