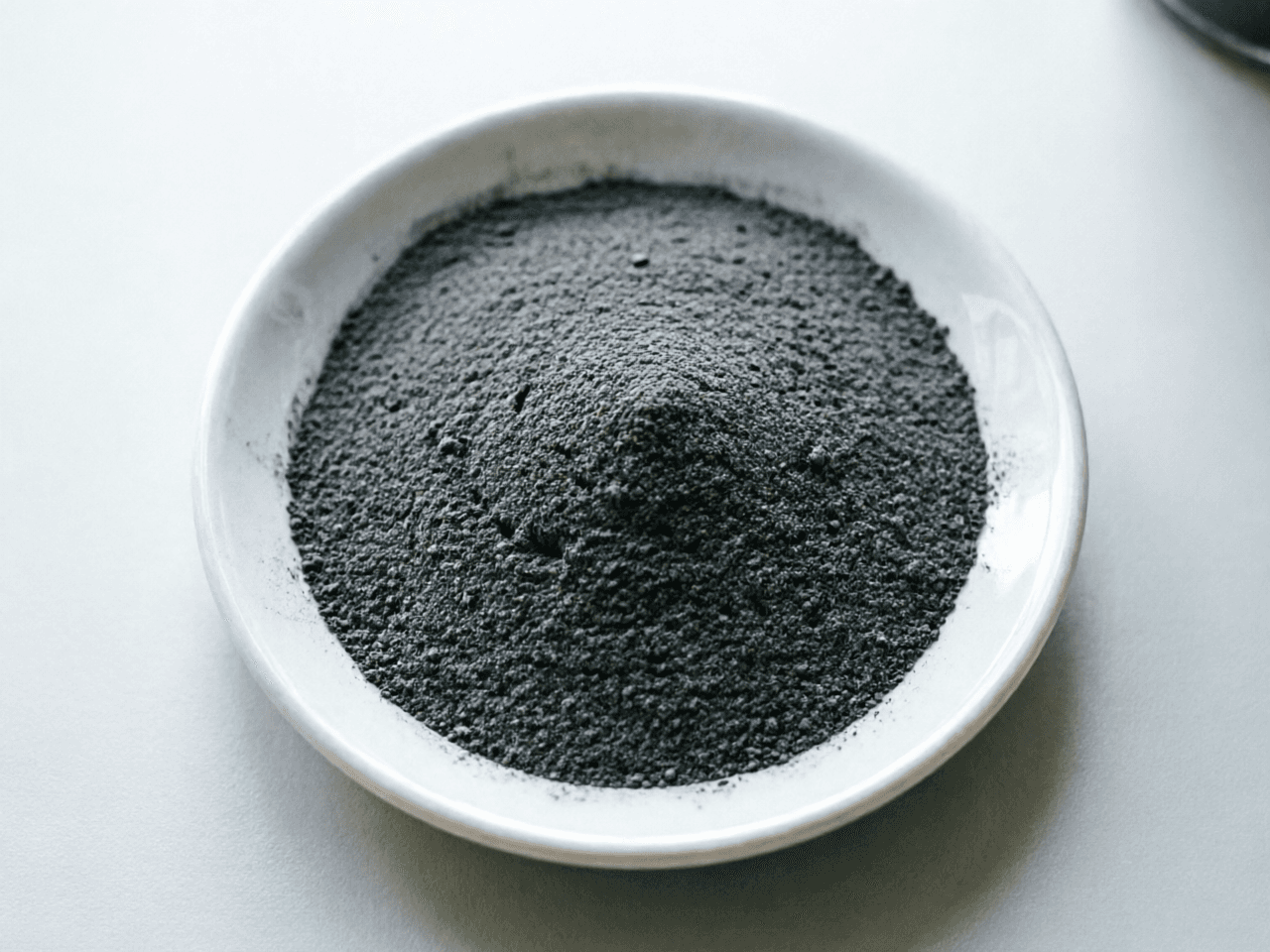

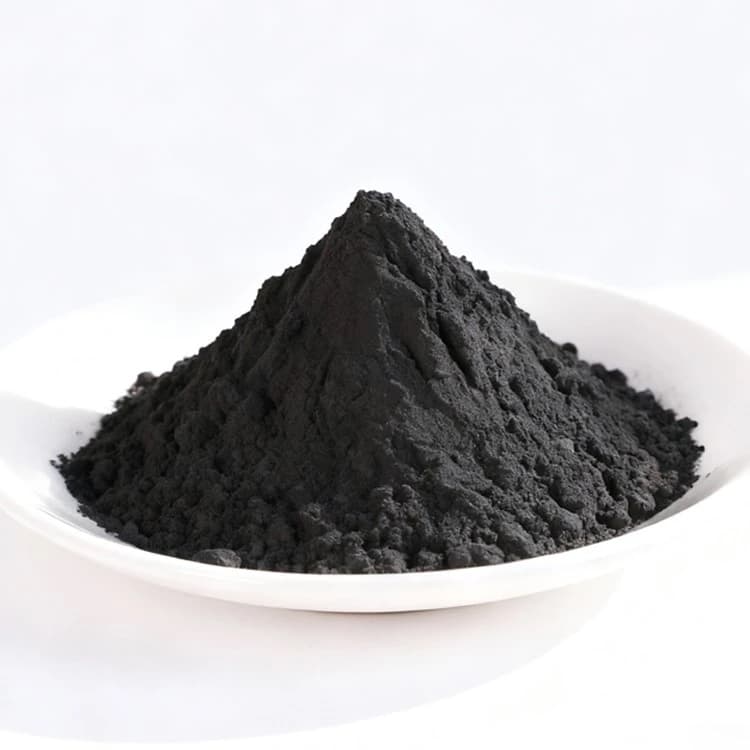

Ultrafine Iron Powder for MIM
High-performance ultrafine iron powder engineered for Metal Injection Molding, with D10 down to 2.5 μm, low carbon and oxygen levels for superior molding precision and sintering quality.
- Materials
- Ultrafine iron powder (Fe > 97.5–98.5 wt%)
- Features
- Fine particle size distribution, low oxygen & carbon content, high tap density
- Application
- MIM parts for automotive, medical devices and aerospace, where precision and material consistency are crucial.
Specifications
| Parameter | Value |
|---|---|
| L-QIP-M3 — D10 / D50 / D90 | <2.5 / 3–3.5 / <5 μm |
| L-QIP-M6 — D10 / D50 / D90 | <4.5 / 5.5–6 / <12 μm |
| L-QIP-M9 — D10 / D50 / D90 | <8 / 9–12 / <25 μm |
| Apparent Density | >2.0–2.6 g/cm³ |
| Tap Density | ≥3.5–4.0 g/cm³ |
| Oxygen Content | <4500–8000 ppm |
| Carbon Content | <300 ppm |
| Total Iron Content | >97.5–98.5 wt% |
Frequently Asked Questions
What is Ultrafine Iron Powder for MIM and how is its quality controlled?
Ultrafine Iron Powder for MIM is a metallurgy powder product (Ultrafine iron powder (Fe > 97.5–98.5 wt%)). The key quality indicators are particle size distribution, particle shape and batch-to-batch consistency, which are controlled throughout production. Share your target specification and we will confirm the matching grade.
What are the key specifications of Ultrafine Iron Powder for MIM?
Typical specifications: L-QIP-M3 — D10 / D50 / D90: <2.5 / 3–3.5 / <5 μm; L-QIP-M6 — D10 / D50 / D90: <4.5 / 5.5–6 / <12 μm; L-QIP-M9 — D10 / D50 / D90: <8 / 9–12 / <25 μm. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Ultrafine Iron Powder for MIM?
MOQ starts at 1000 (unit of measure depends on the product form). Standard production lead time is about 7 days; the exact schedule is confirmed with the order.
