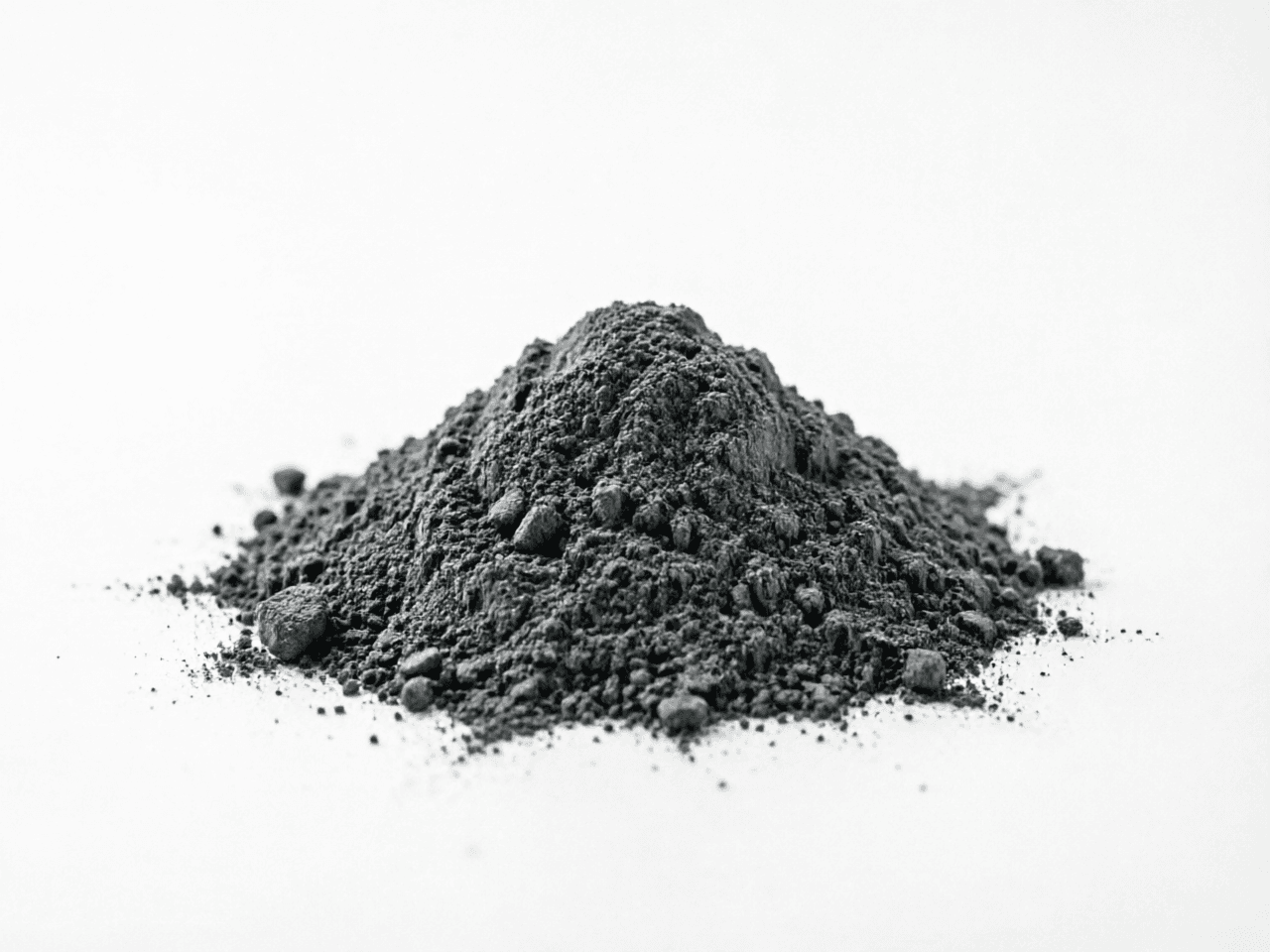

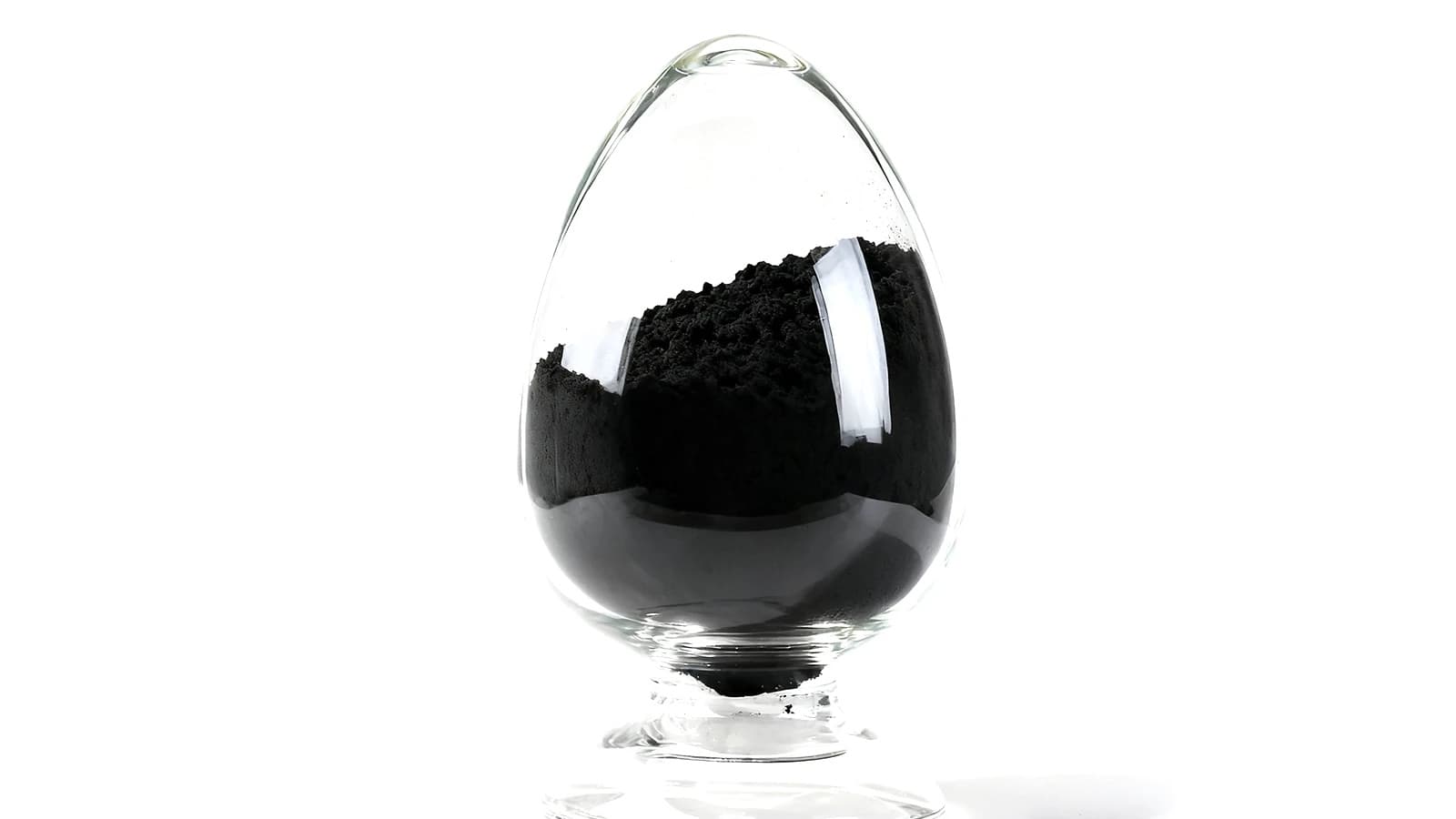

PM Iron Powder
Iron powder engineered for Powder Metallurgy pressing of high-density components (> 7.5 g/cm³), with excellent sintering activity for strong, durable parts.
- Materials
- Iron powder (Fe > 98.5%)
- Features
- High sintering activity, controlled particle size, low oxygen & carbon content
- Application
- High-density, high-strength PM parts for automotive, aerospace and industrial machinery.
Specifications
| Parameter | Value |
|---|---|
| D10 | < 4.5 μm |
| D90 | < 12 μm |
| Part Density | > 7.5 g/cm³ |
| Oxygen Content | < 4500 ppm |
| Carbon Content | < 300 ppm |
| Total Iron Content | > 98.5% |
Frequently Asked Questions
What is PM Iron Powder and how is its quality controlled?
PM Iron Powder is a metallurgy powder product (Iron powder (Fe > 98.5%)). The key quality indicators are particle size distribution, particle shape and batch-to-batch consistency, which are controlled throughout production. Share your target specification and we will confirm the matching grade.
What are the key specifications of PM Iron Powder?
Typical specifications: D10: < 4.5 μm; D90: < 12 μm; Part Density: > 7.5 g/cm³. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for PM Iron Powder?
MOQ starts at 1000 (unit of measure depends on the product form). Standard production lead time is about 7 days; the exact schedule is confirmed with the order.
