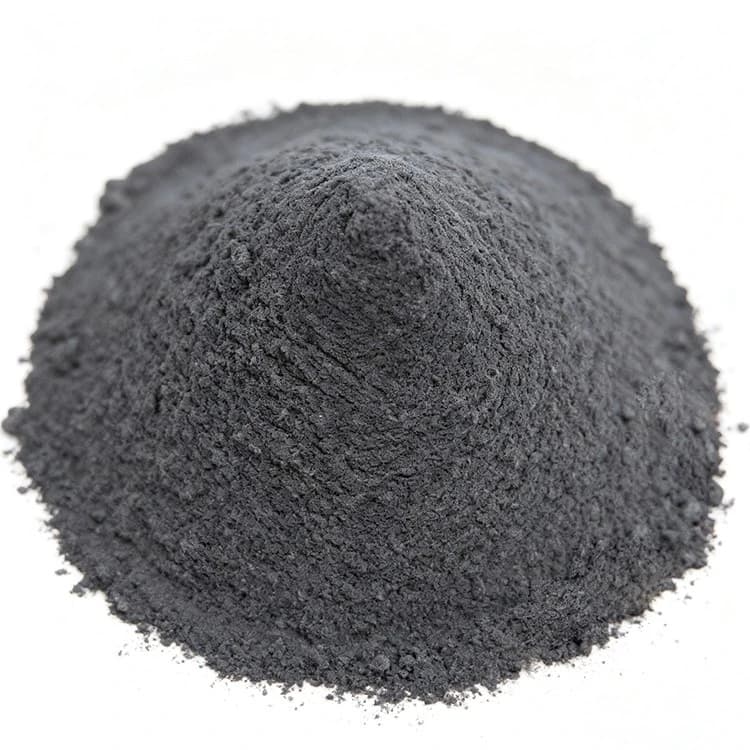

High Density Iron Powder
Specially formulated iron powder for PM processes where superior density and mechanical properties are paramount, enabling components with density greater than 7.5 g/cm³.
- Materials
- Iron powder (Fe > 98.5%)
- Features
- Optimal compaction, high sintering activity, low oxygen & carbon content
- Application
- Gears, bearings and industrial components in automotive, aerospace and electronics.
Specifications
| Parameter | Value |
|---|---|
| PIP-L6 — D10 / D50 / D90 | <4.5 / 5.5–6.5 / <12 μm |
| PIP-L9 — D10 / D50 / D90 | <8 / 10–12 / <25 μm |
| Apparent Density | 1.5–3 g/cm³ |
| Tap Density | 2.5–3.5 g/cm³ |
| Oxygen Content | < 4500 ppm |
| Carbon Content | < 300 ppm |
| Total Iron Content | > 98.5% |
Frequently Asked Questions
What is High Density Iron Powder and how is its quality controlled?
High Density Iron Powder is a metallurgy powder product (Iron powder (Fe > 98.5%)). The key quality indicators are particle size distribution, particle shape and batch-to-batch consistency, which are controlled throughout production. Share your target specification and we will confirm the matching grade.
What are the key specifications of High Density Iron Powder?
Typical specifications: PIP-L6 — D10 / D50 / D90: <4.5 / 5.5–6.5 / <12 μm; PIP-L9 — D10 / D50 / D90: <8 / 10–12 / <25 μm; Apparent Density: 1.5–3 g/cm³. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for High Density Iron Powder?
MOQ starts at 1000 (unit of measure depends on the product form). Standard production lead time is about 7 days; the exact schedule is confirmed with the order.
