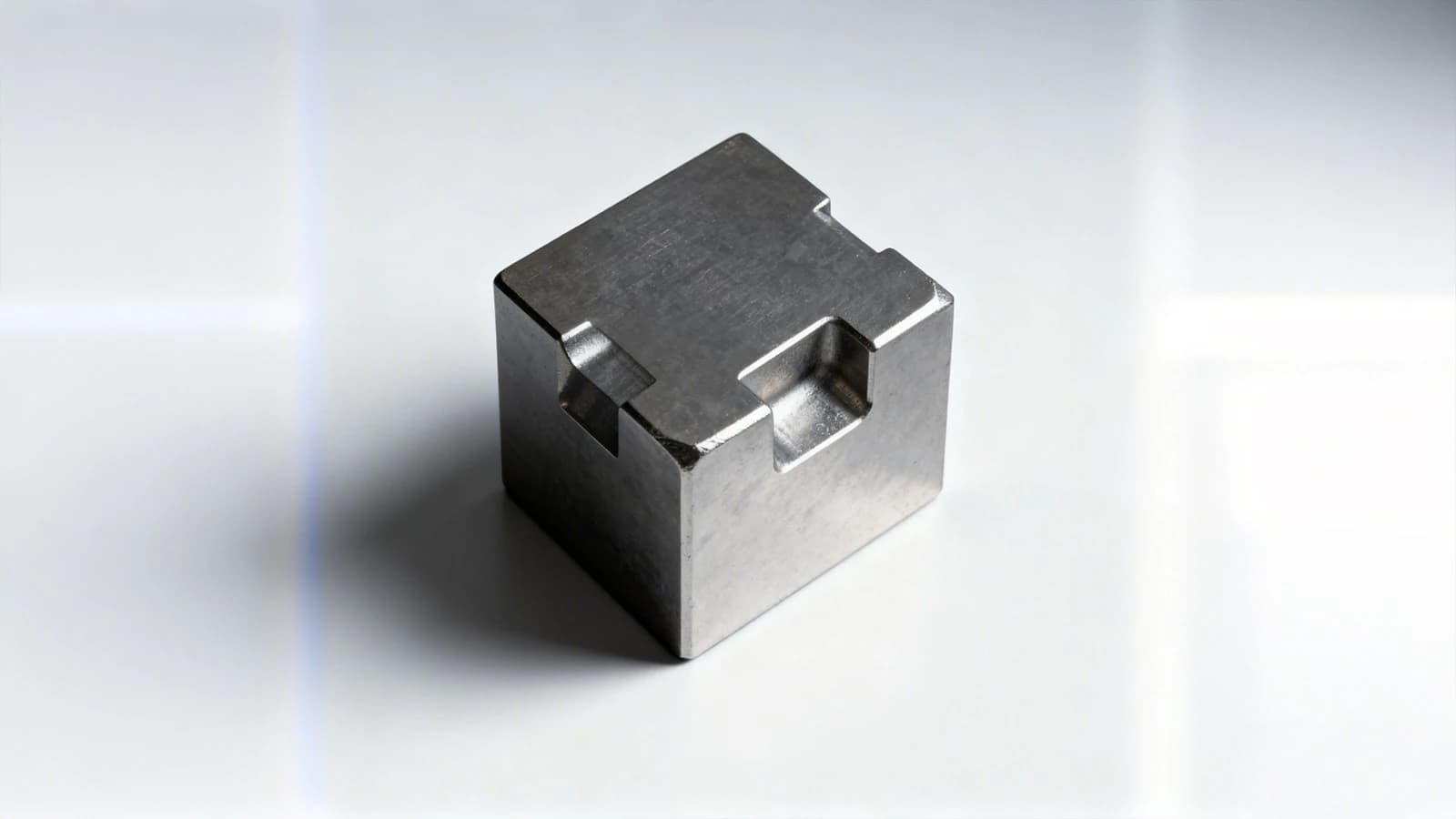

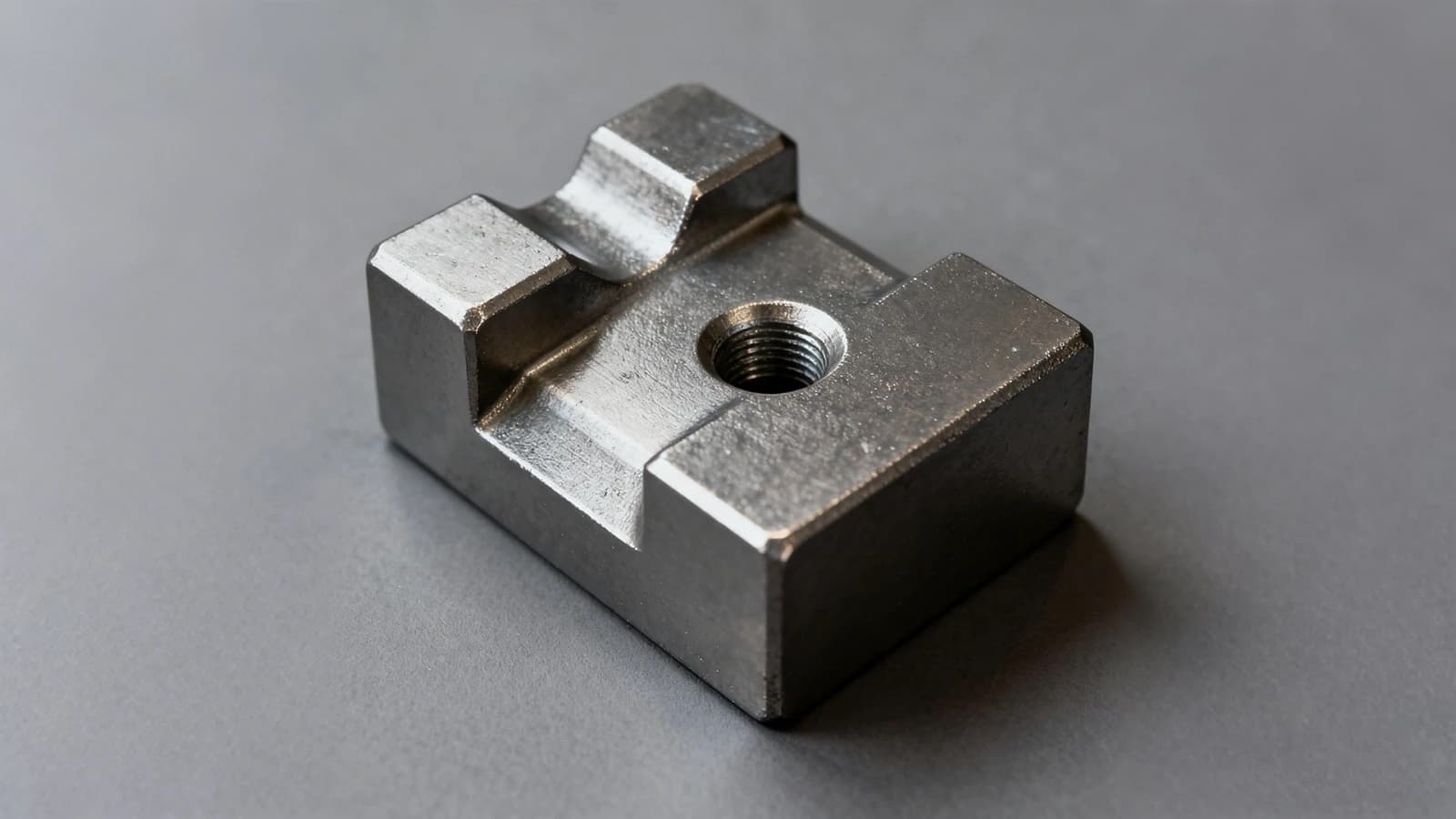

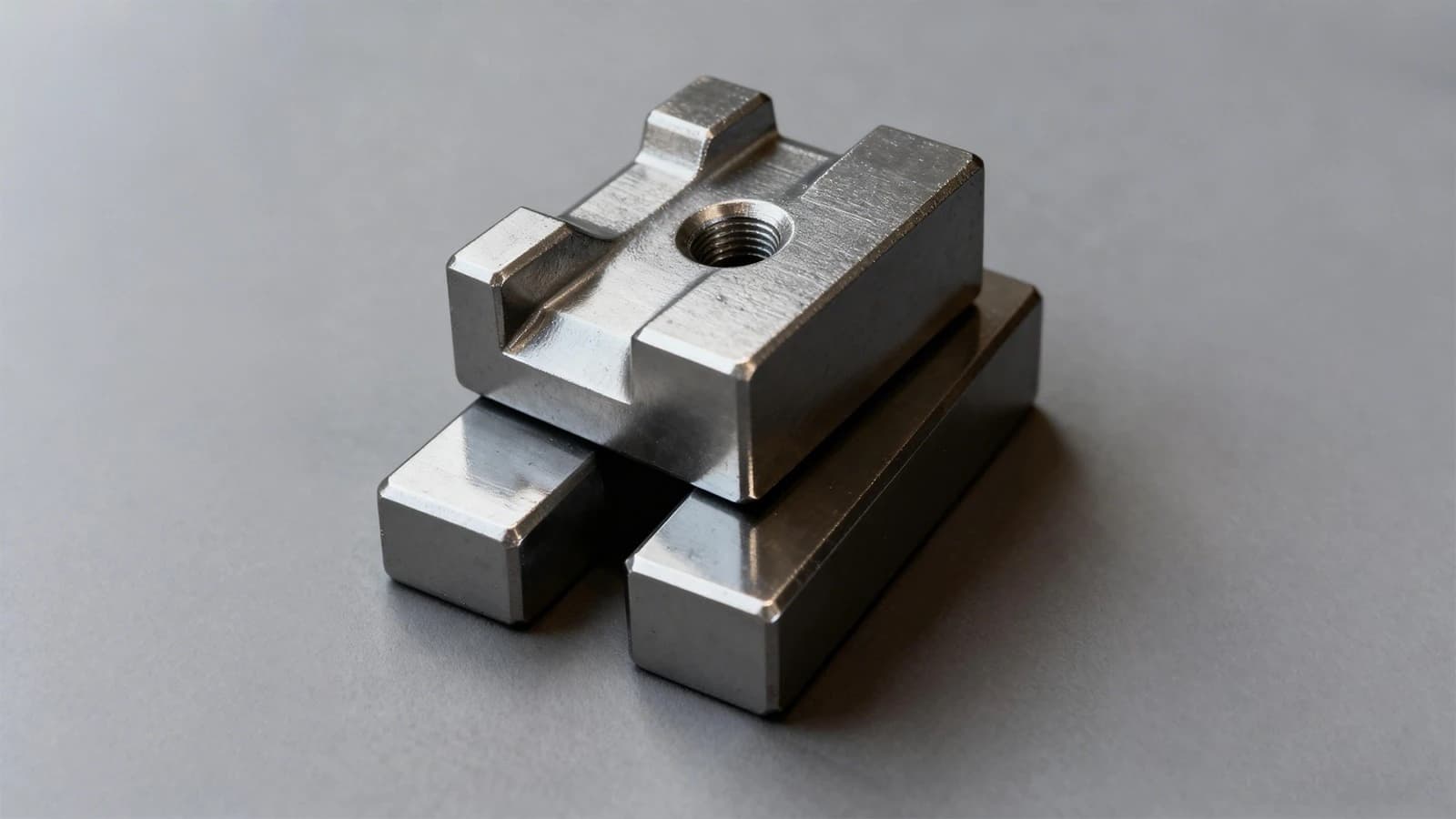

Tungsten Heavy Alloy Counterweights
Tungsten heavy alloy counterweights for applications demanding ultra-high density and compact mass distribution — densities up to 18.5 g/cm³ in blocks, rods, plates and inserts.
- Materials
- W-Ni-Fe tungsten heavy alloy
- Features
- Ultra-high density for compact mass placement, consistent microstructure, customizable shapes (blocks, rods, plates, inserts), excellent corrosion resistance and dimensional stability, surface finishing options
- Application
- Precision machinery and automated systems, aerospace and defense counterweights, robotics and industrial balancing systems, scientific instruments and high-precision laboratory devices.
Specifications
| Parameter | Value |
|---|---|
| Density | Up to 18.5 g/cm³ |
| Alloy System | W-Ni-Fe |
| Forms | Blocks, rods, plates, inserts / 块、棒、板、嵌件 |
Frequently Asked Questions
What materials and process are used for Tungsten Heavy Alloy Counterweights?
Tungsten Heavy Alloy Counterweights is made from W-Ni-Fe tungsten heavy alloy and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What are the key specifications of Tungsten Heavy Alloy Counterweights?
Typical specifications: Density: Up to 18.5 g/cm³; Alloy System: W-Ni-Fe; Forms: Blocks, rods, plates, inserts / 块、棒、板、嵌件. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Tungsten Heavy Alloy Counterweights?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
