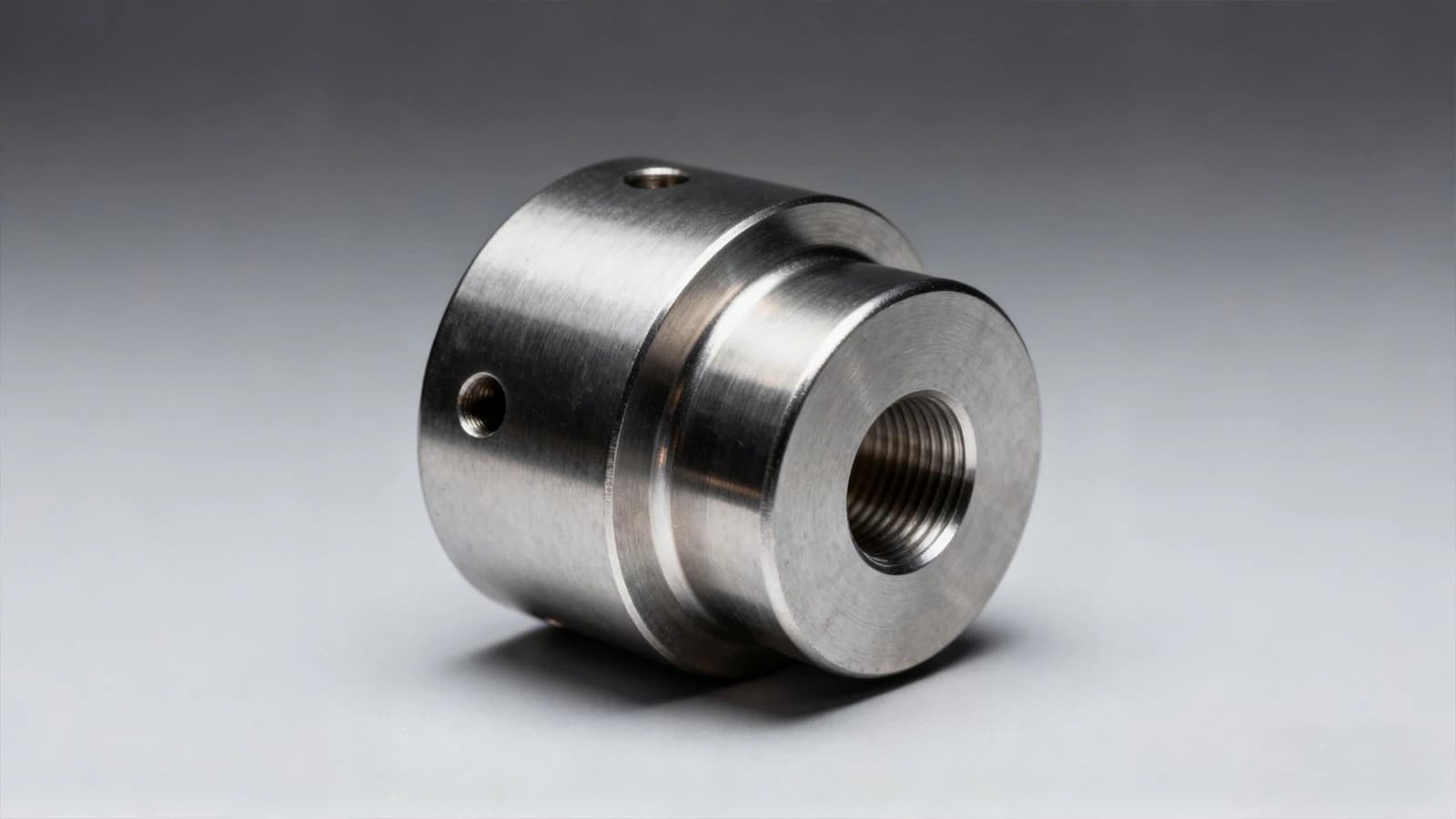

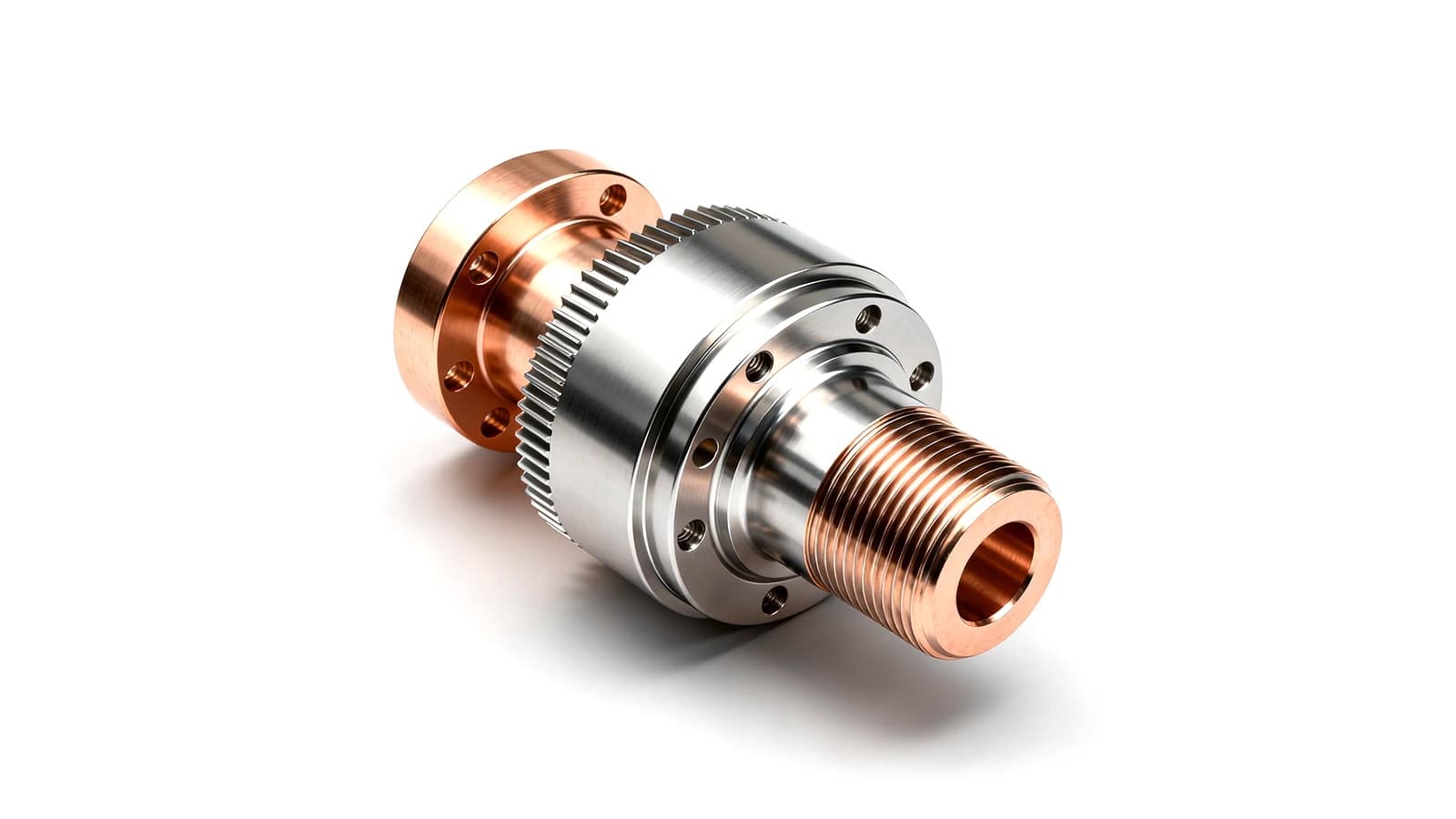

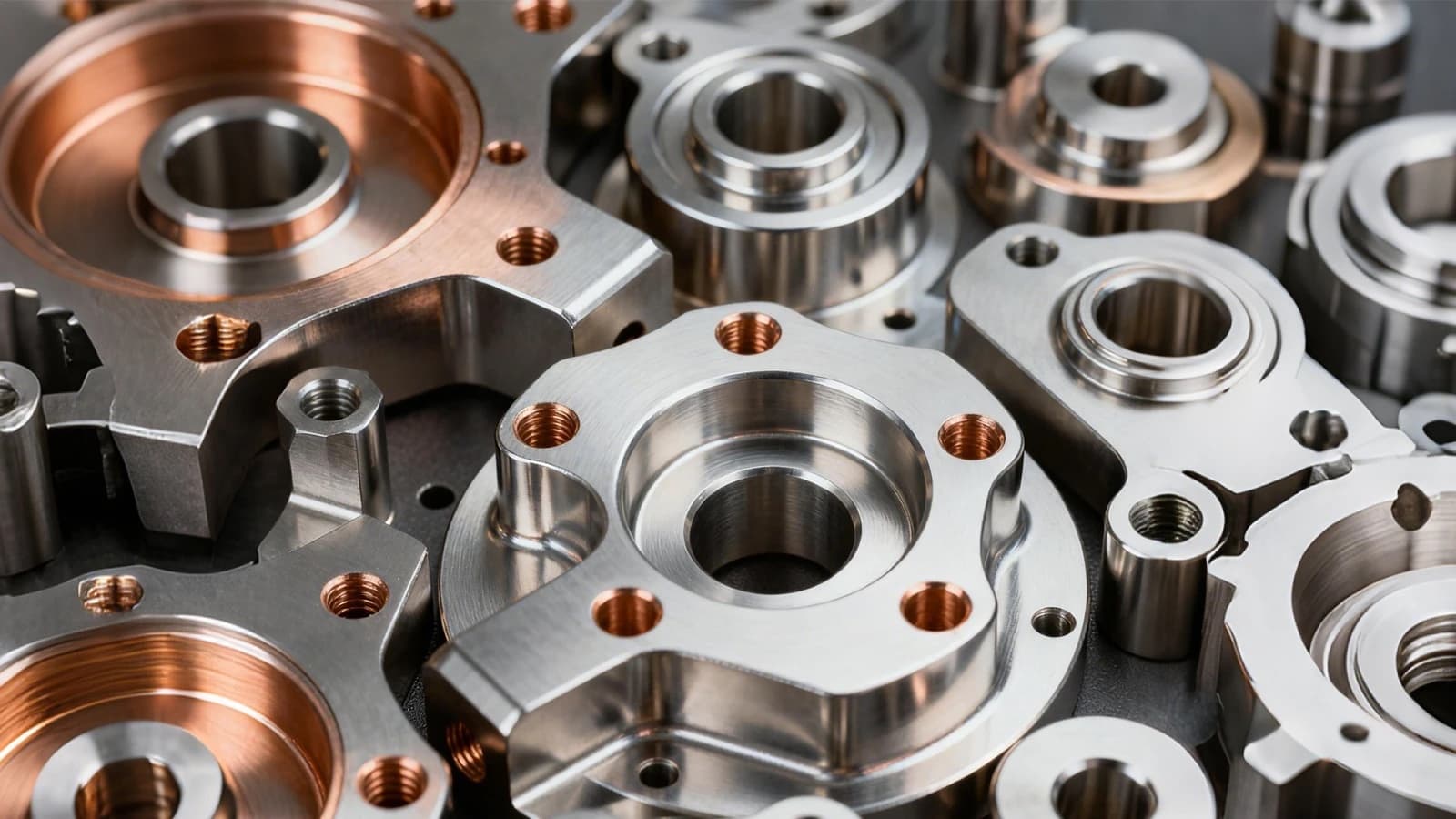

Copper Nickel Tungsten Components
Cu-Ni-W components for demanding thermal, mechanical and corrosive environments — uniform alloy distribution, high thermal conductivity and mechanical strength via proprietary powders and PM/MIM processing.
- Materials
- Cu-Ni-W alloy (self-developed powders)
- Features
- High strength with excellent thermal/electrical conductivity, superior corrosion and oxidation resistance, thin-wall complex geometries, homogeneous microstructure, cost-effective high-volume production
- Application
- Electrical connectors and thermal management in high-power electronics, aerospace structural parts, high-temperature and vacuum-compatible assemblies, corrosive industrial machinery, precision multi-metal assemblies.
Frequently Asked Questions
What materials and process are used for Copper Nickel Tungsten Components?
Copper Nickel Tungsten Components is made from Cu-Ni-W alloy (self-developed powders) and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What tolerances can Copper Nickel Tungsten Components hold?
Typical as-sintered dimensional tolerance is ±0.3–0.5% of the dimension. Tighter tolerances are achievable with secondary sizing or machining, agreed per part during quoting.
What is the MOQ and lead time for Copper Nickel Tungsten Components?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
