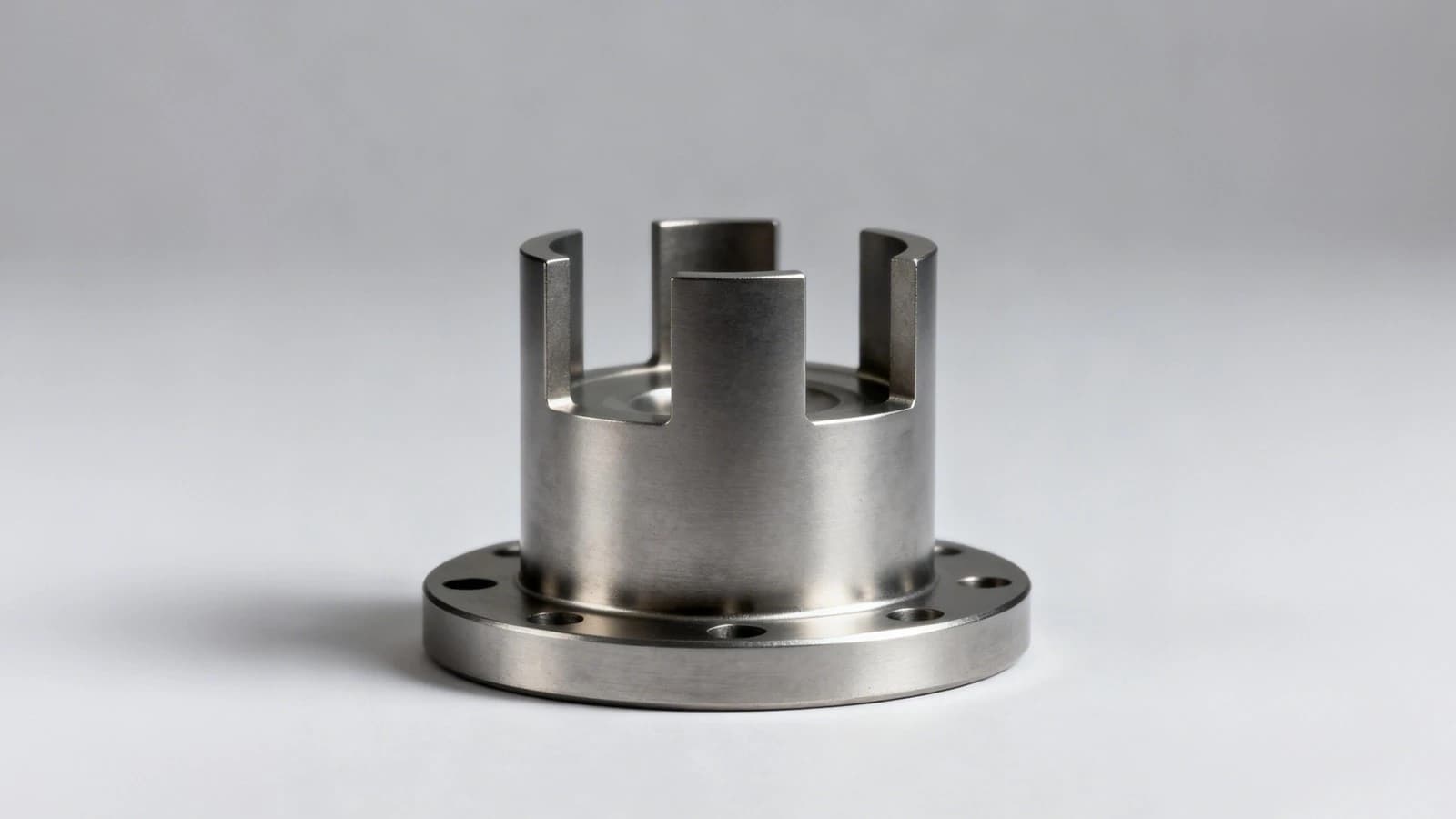

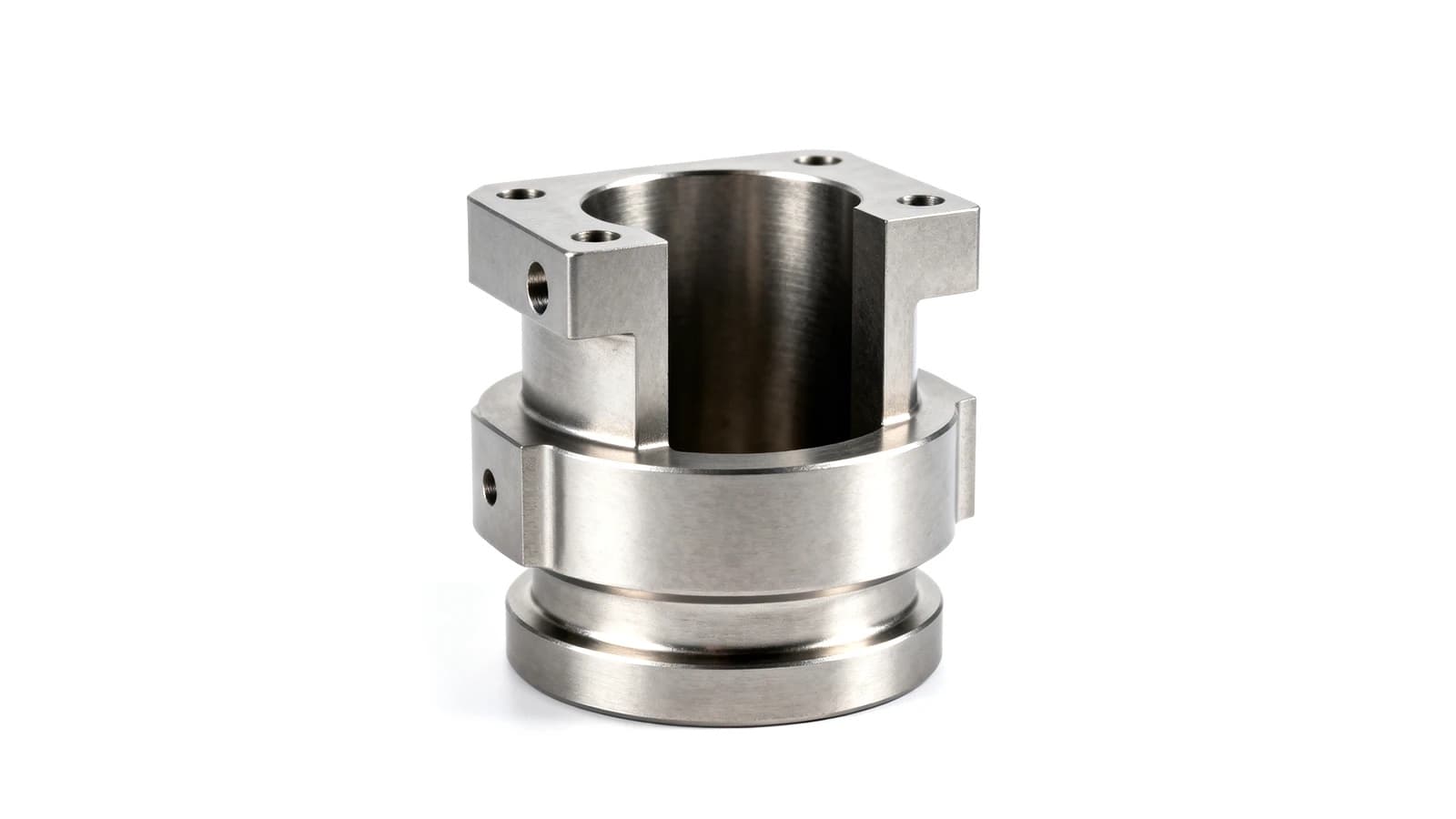

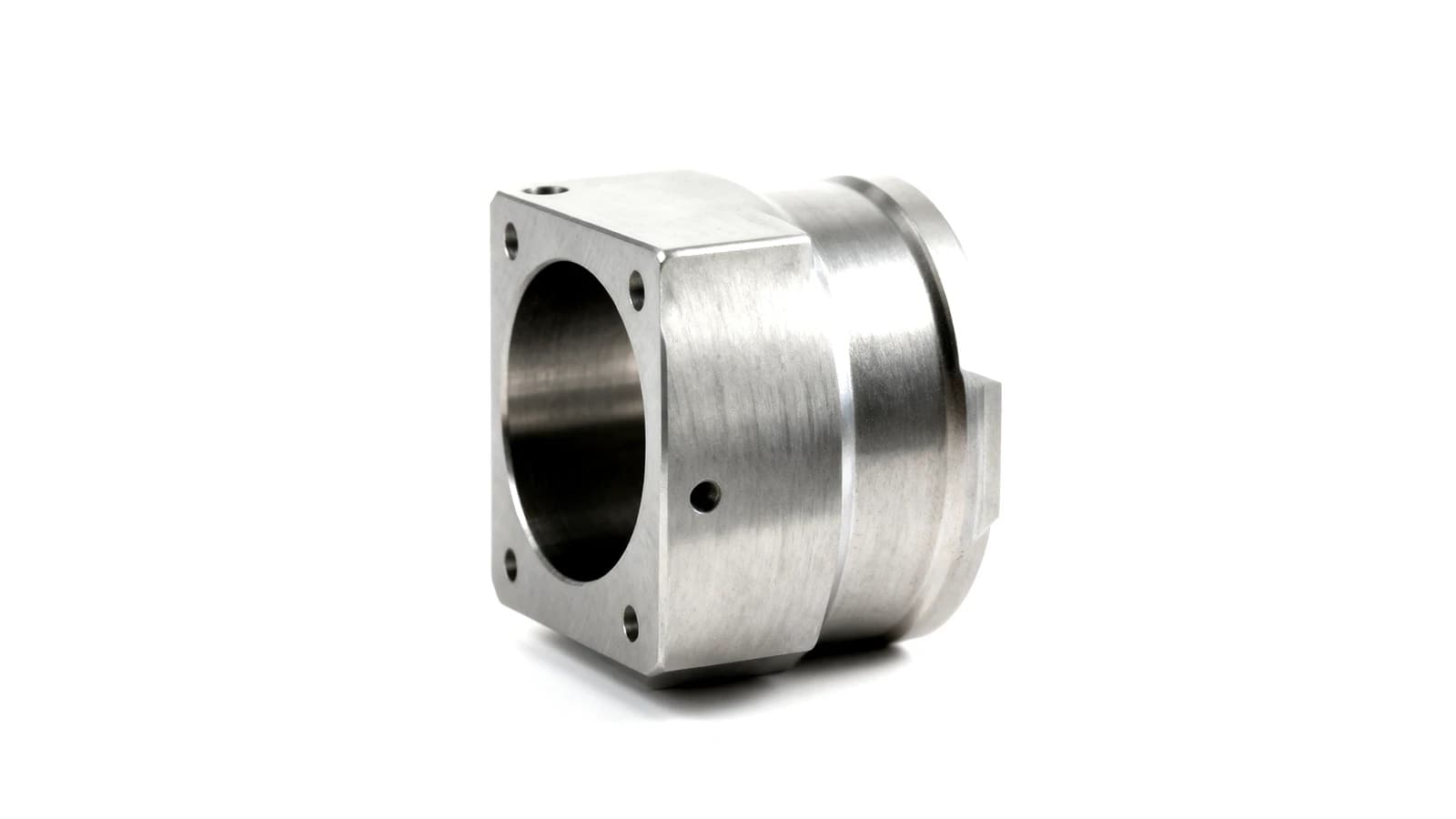

Tungsten Alloy Radiation Shields
W-Ni-Fe radiation shields for high-efficiency X-ray and gamma attenuation in medical, aerospace and industrial applications — maximum shielding in minimal volume, lead-free.
- Materials
- W-Ni-Fe tungsten alloy (lead-free)
- Features
- Density up to 18.5 g/cm³, high strength against cracking and deformation, machinable custom contours/holes/slots, lead-free regulatory compliance, long-term dimensional stability
- Application
- Medical imaging equipment (CT, X-ray, PET), nuclear power plants and laboratories, satellite and spacecraft shielding, industrial radiography and NDT systems, portable emergency shields.
Specifications
| Parameter | Value |
|---|---|
| Density | Up to 18.5 g/cm³ |
| Composition | Lead-free / 无铅 |
| Alloy System | W-Ni-Fe |
Frequently Asked Questions
What materials and process are used for Tungsten Alloy Radiation Shields?
Tungsten Alloy Radiation Shields is made from W-Ni-Fe tungsten alloy (lead-free) and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What are the key specifications of Tungsten Alloy Radiation Shields?
Typical specifications: Density: Up to 18.5 g/cm³; Composition: Lead-free / 无铅; Alloy System: W-Ni-Fe. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Tungsten Alloy Radiation Shields?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
