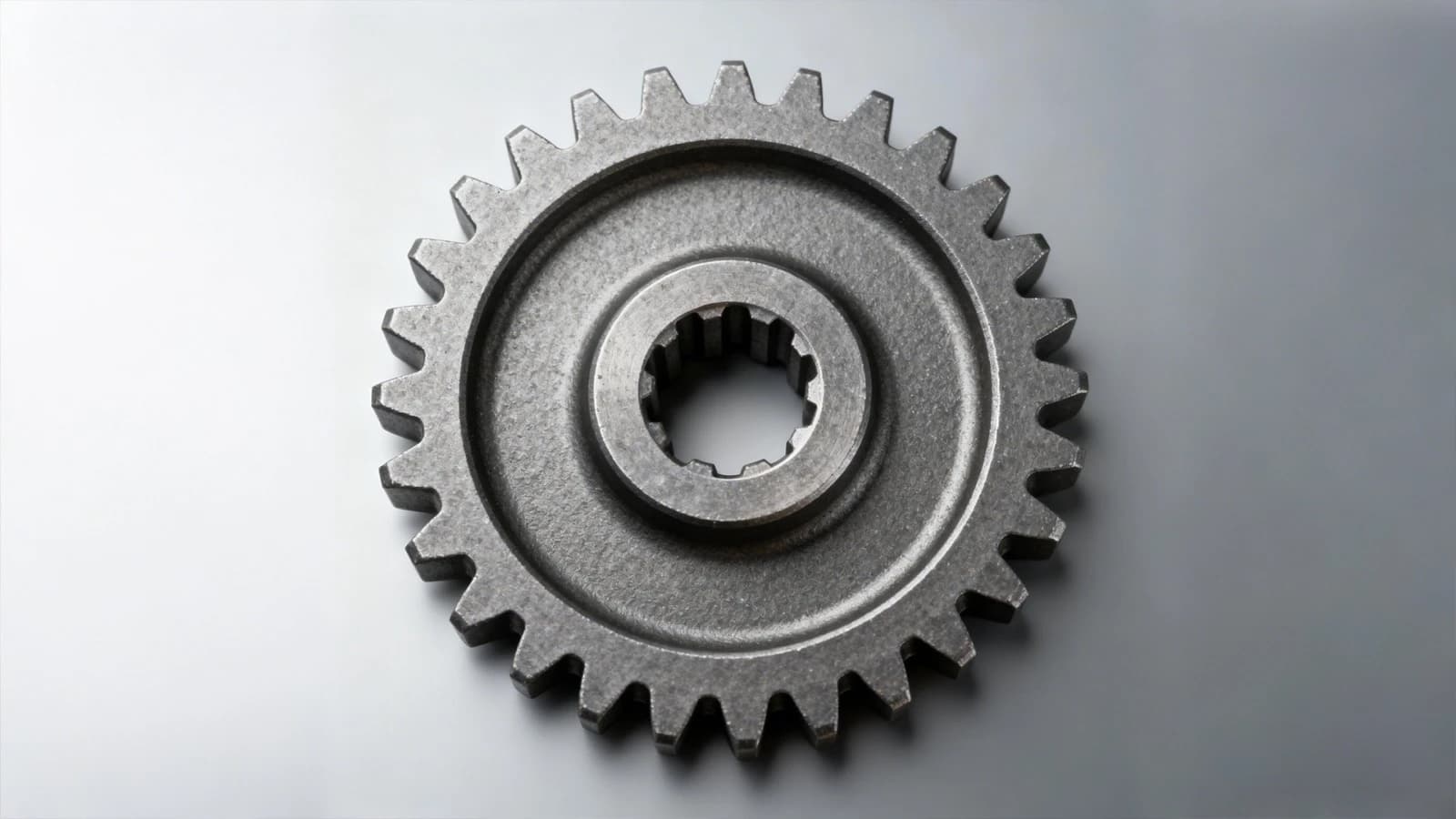

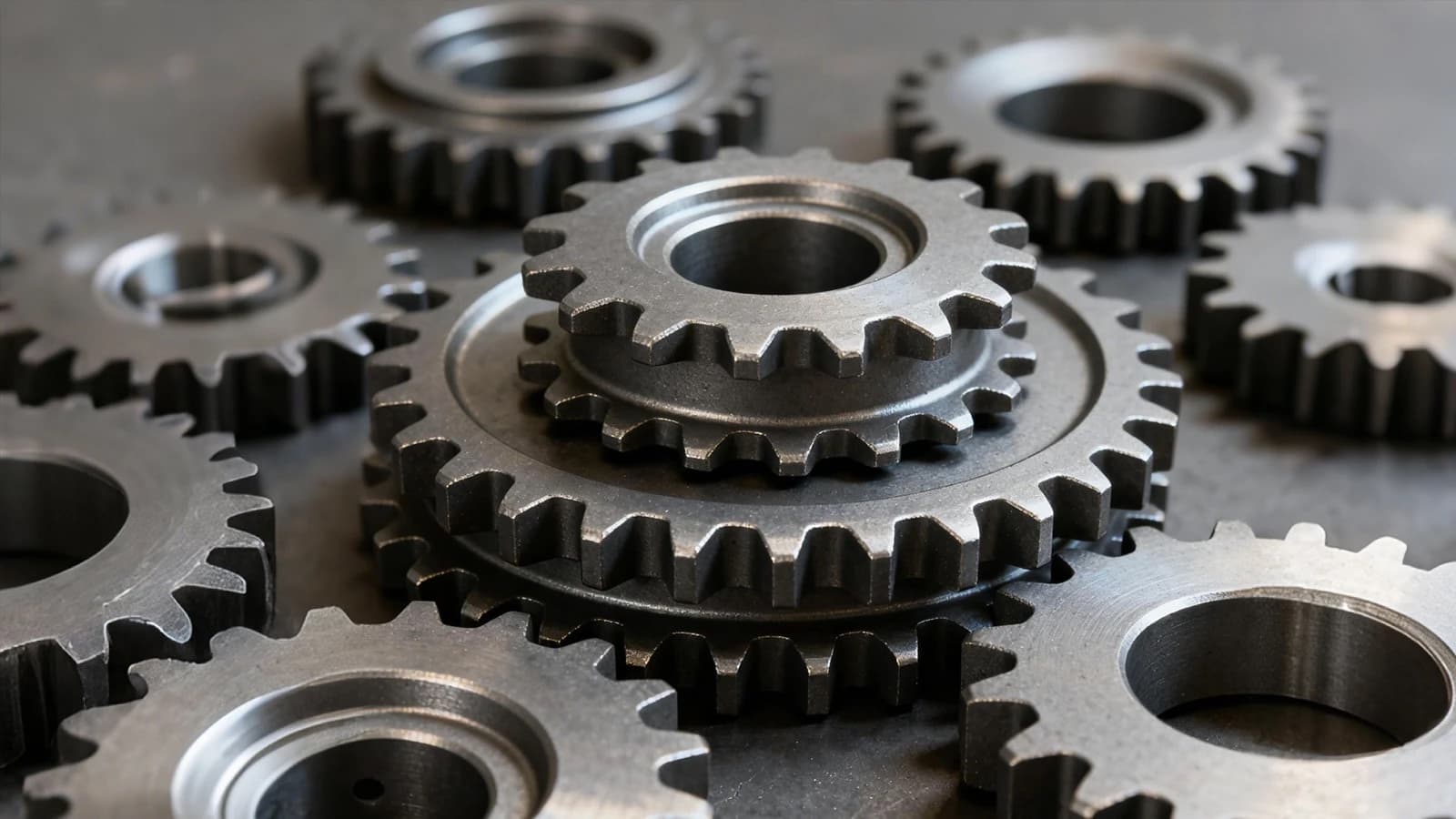

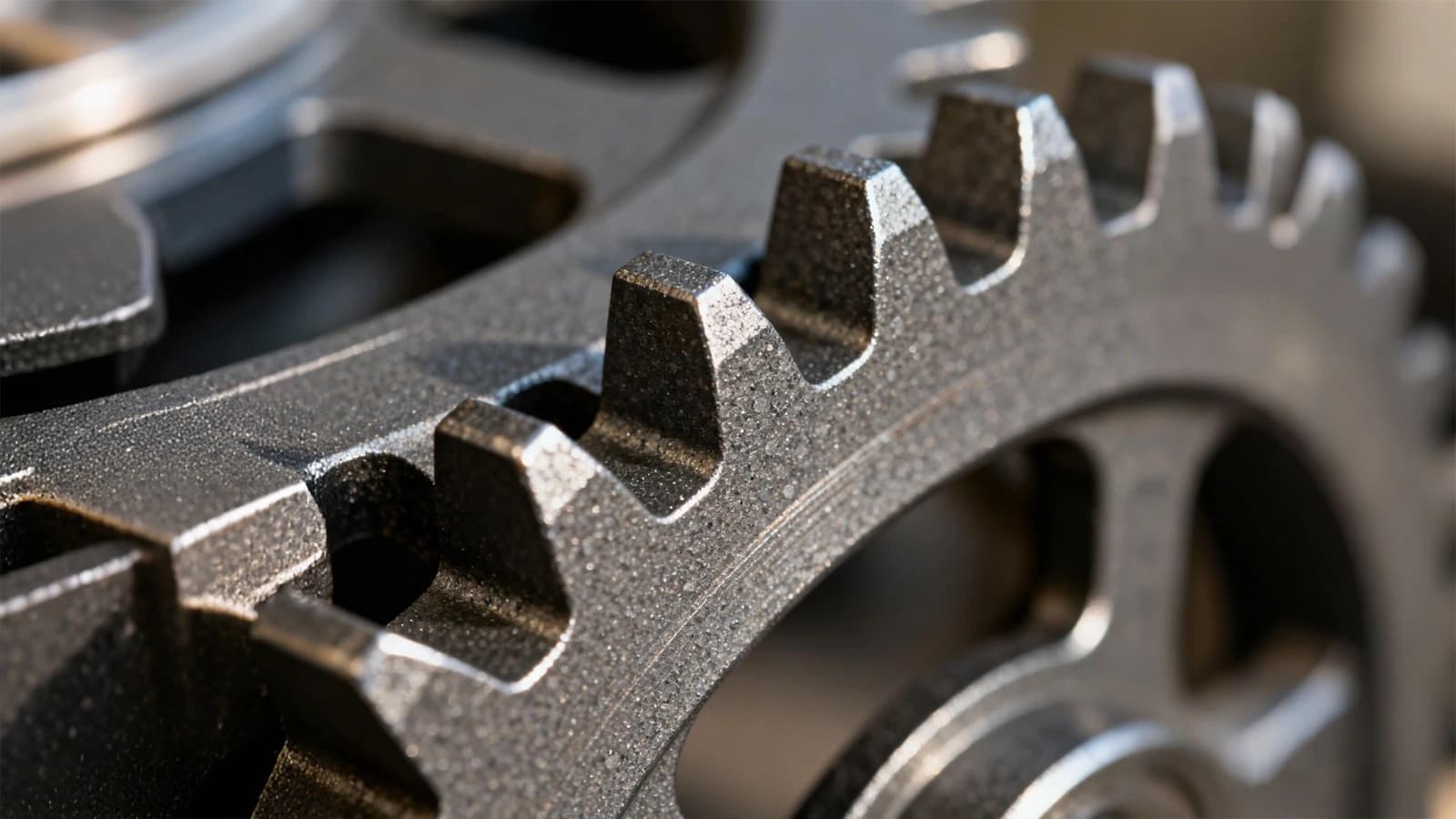

Powder Metallurgy Sprockets
PM sprockets for precision torque transmission in automotive, industrial and mechanical systems — uniform density, superior wear resistance and consistent tooth geometry.
- Materials
- Self-developed PM alloy powders
- Features
- High wear resistance and fatigue strength, uniform tooth geometry with minimal backlash, complex profiles and thin-wall structures, optional surface hardening or plating, cost-efficient high-volume production
- Application
- Automotive timing and drive systems, industrial conveyor and production machinery, motor drive assemblies in robotics and automation, agricultural and heavy equipment, high-precision mechanical systems.
Frequently Asked Questions
What materials and process are used for Powder Metallurgy Sprockets?
Powder Metallurgy Sprockets is made from Self-developed PM alloy powders and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What tolerances can Powder Metallurgy Sprockets hold?
Typical as-sintered dimensional tolerance is ±0.3–0.5% of the dimension. Tighter tolerances are achievable with secondary sizing or machining, agreed per part during quoting.
What is the MOQ and lead time for Powder Metallurgy Sprockets?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
