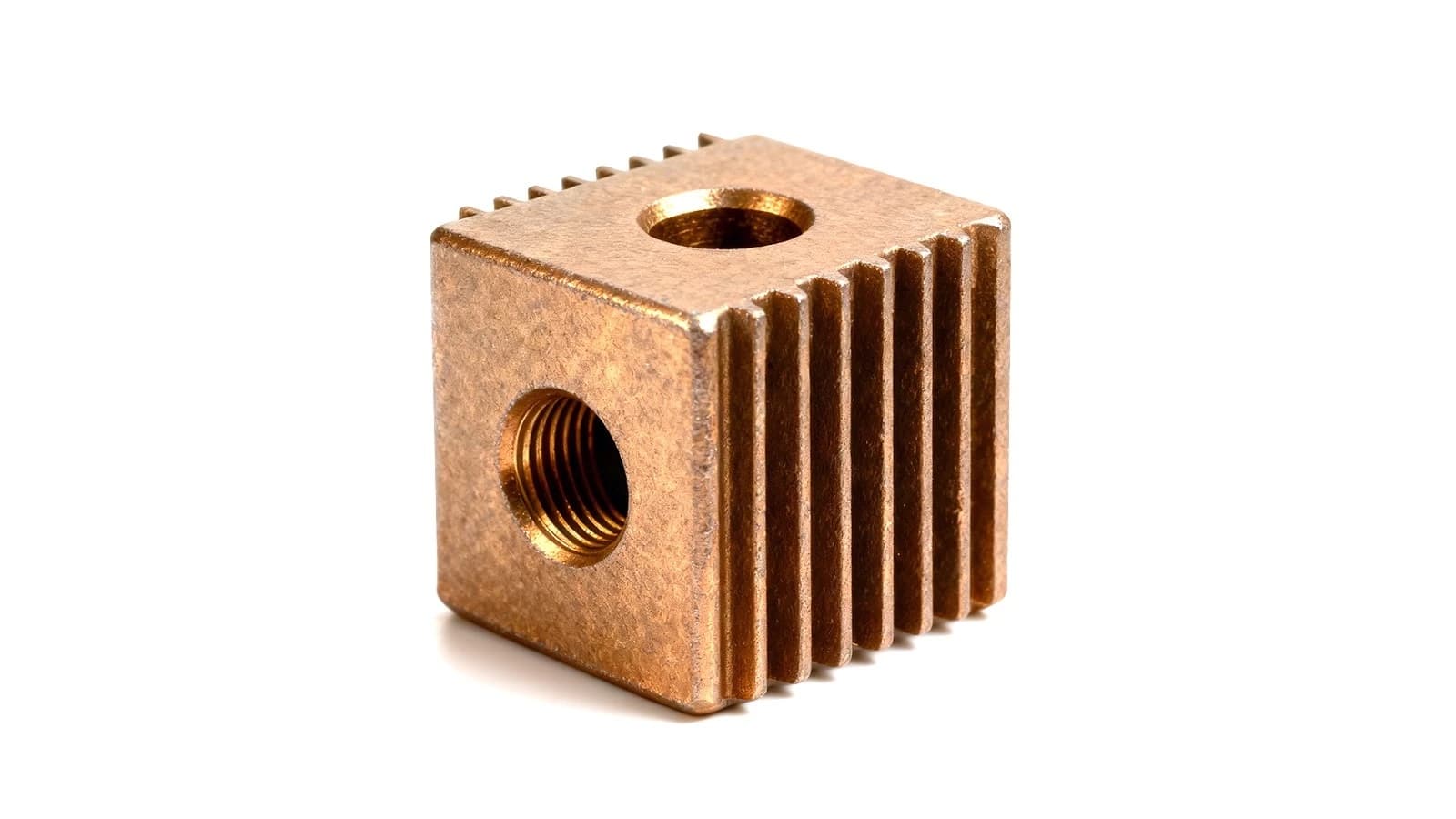

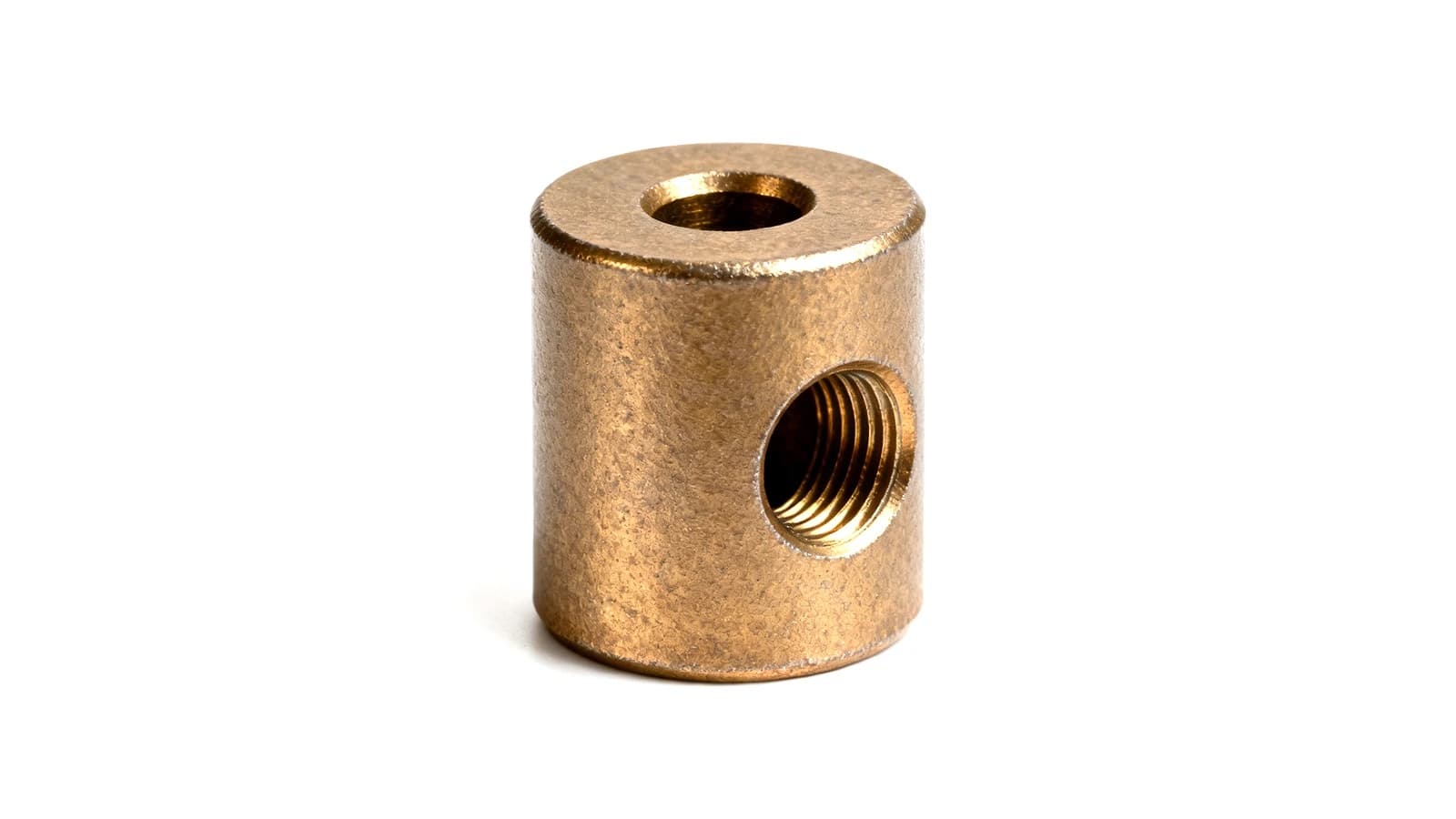

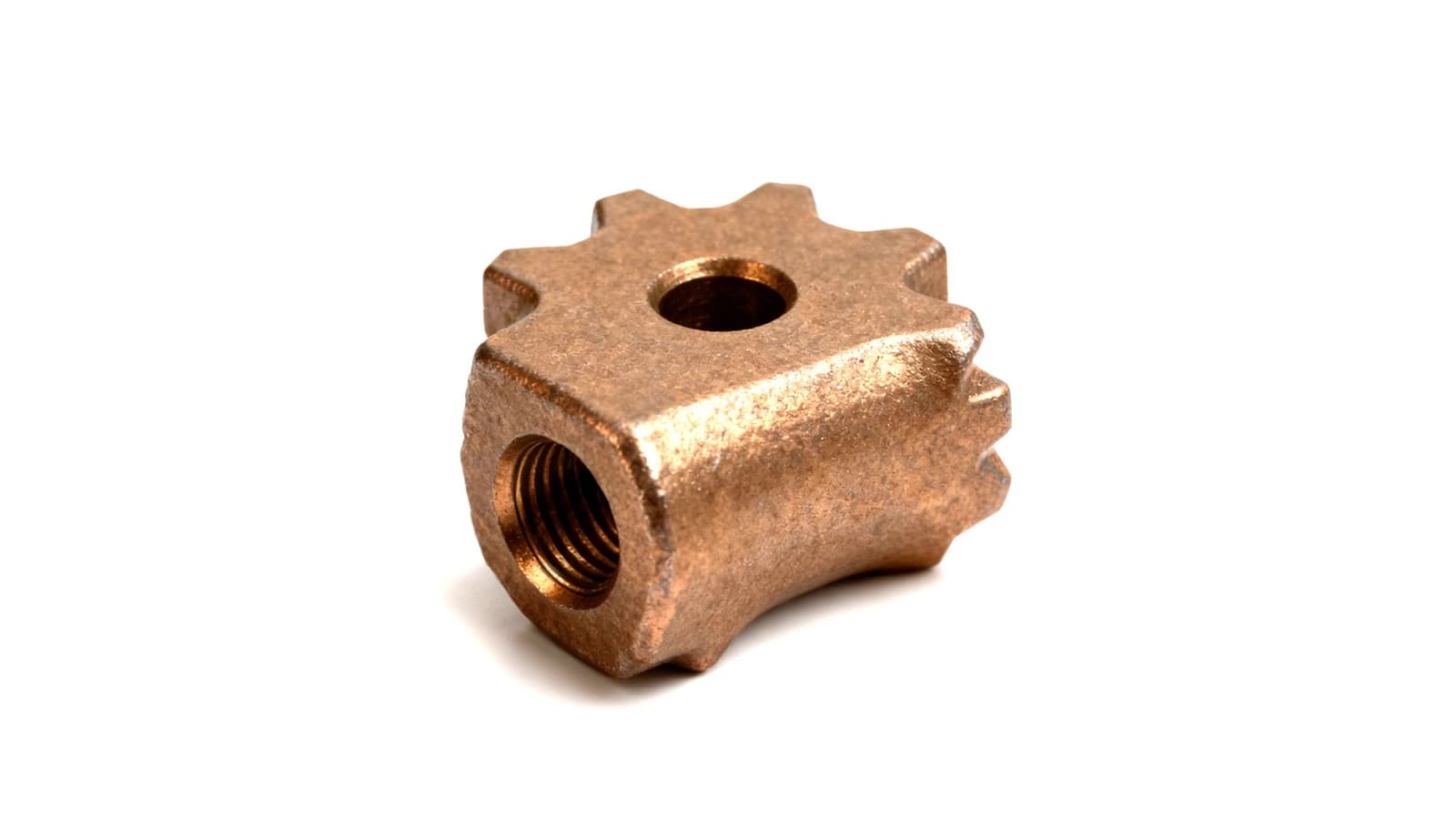

Powder Metallurgy Iron Copper Parts
Fe-Cu PM parts combining high strength, thermal conductivity and wear resistance — enhanced sintering density, precise tolerances and consistent alloy distribution via self-developed powders.
- Materials
- Fe-Cu alloy (self-developed powders, customizable ratios)
- Features
- High dimensional accuracy, uniform density and microstructure, customizable alloy ratios for conductivity or hardness, plating/coating options, net-shape or near-net-shape designs
- Application
- Structural components in industrial machinery and automation, gears/pulleys/shafts for power transmission, small motor components, high-temperature high-wear parts, electrical and thermal interface components.
Frequently Asked Questions
What materials and process are used for Powder Metallurgy Iron Copper Parts?
Powder Metallurgy Iron Copper Parts is made from Fe-Cu alloy (self-developed powders, customizable ratios) and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What tolerances can Powder Metallurgy Iron Copper Parts hold?
Typical as-sintered dimensional tolerance is ±0.3–0.5% of the dimension. Tighter tolerances are achievable with secondary sizing or machining, agreed per part during quoting.
What is the MOQ and lead time for Powder Metallurgy Iron Copper Parts?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
