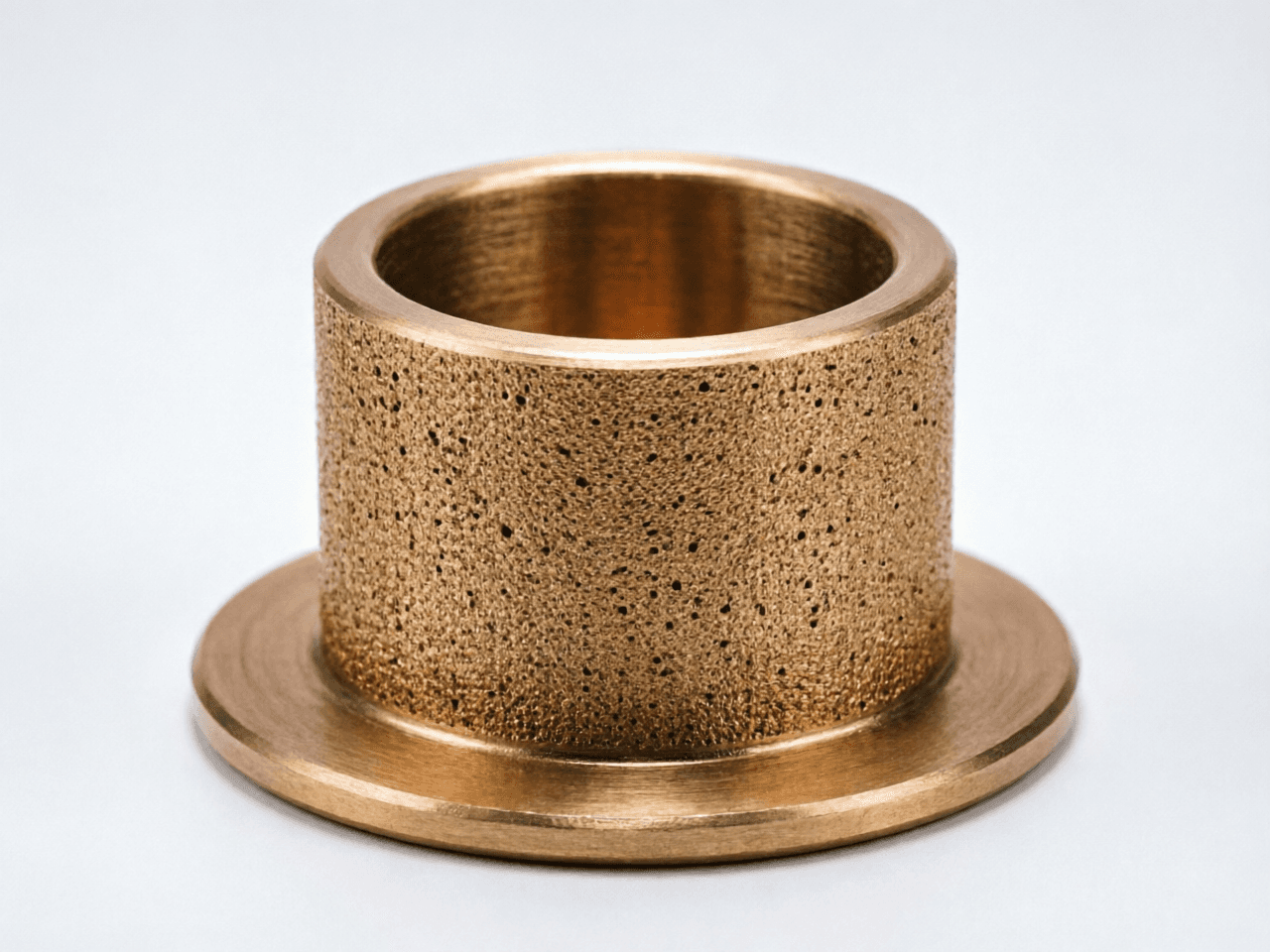

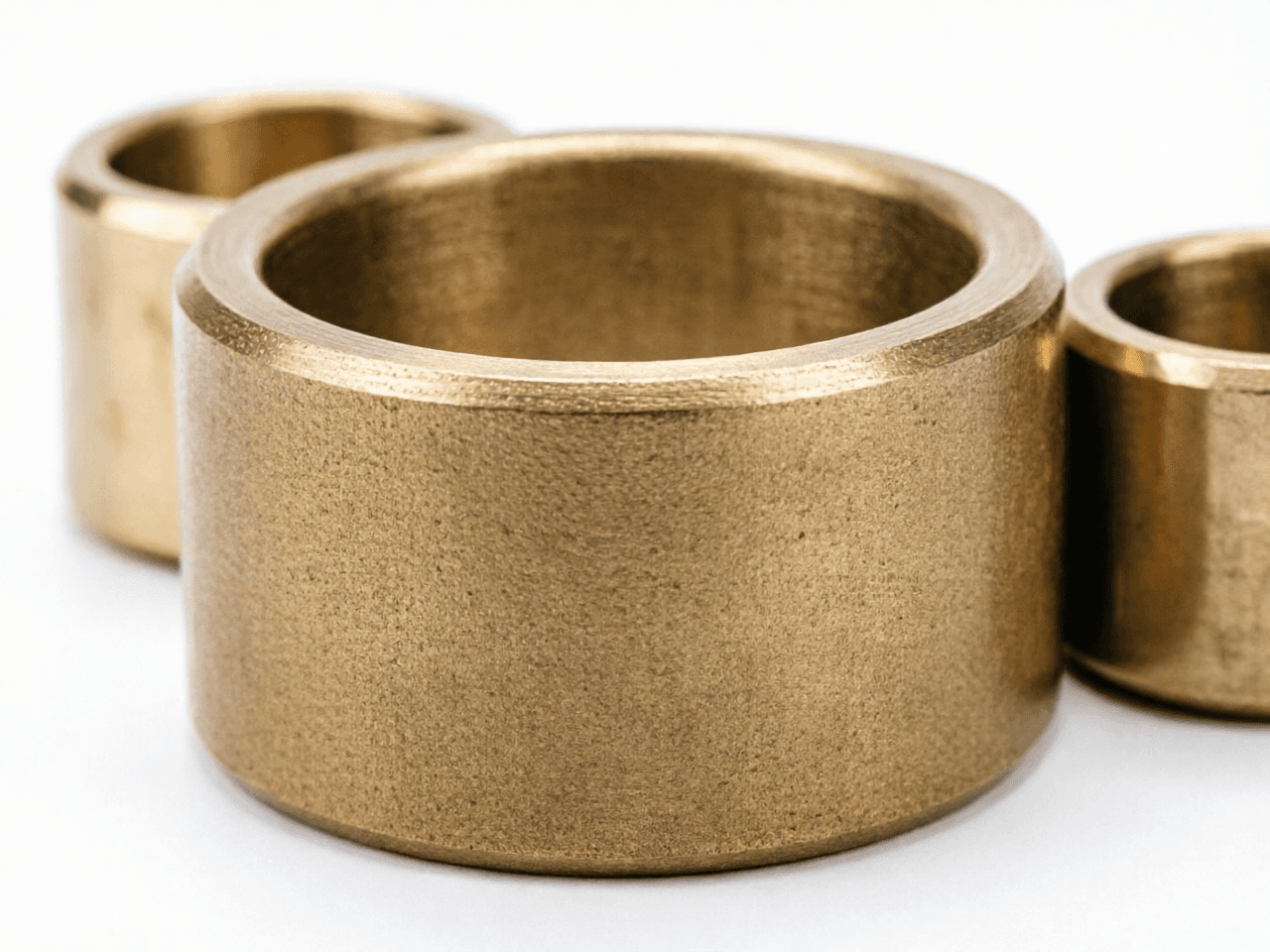

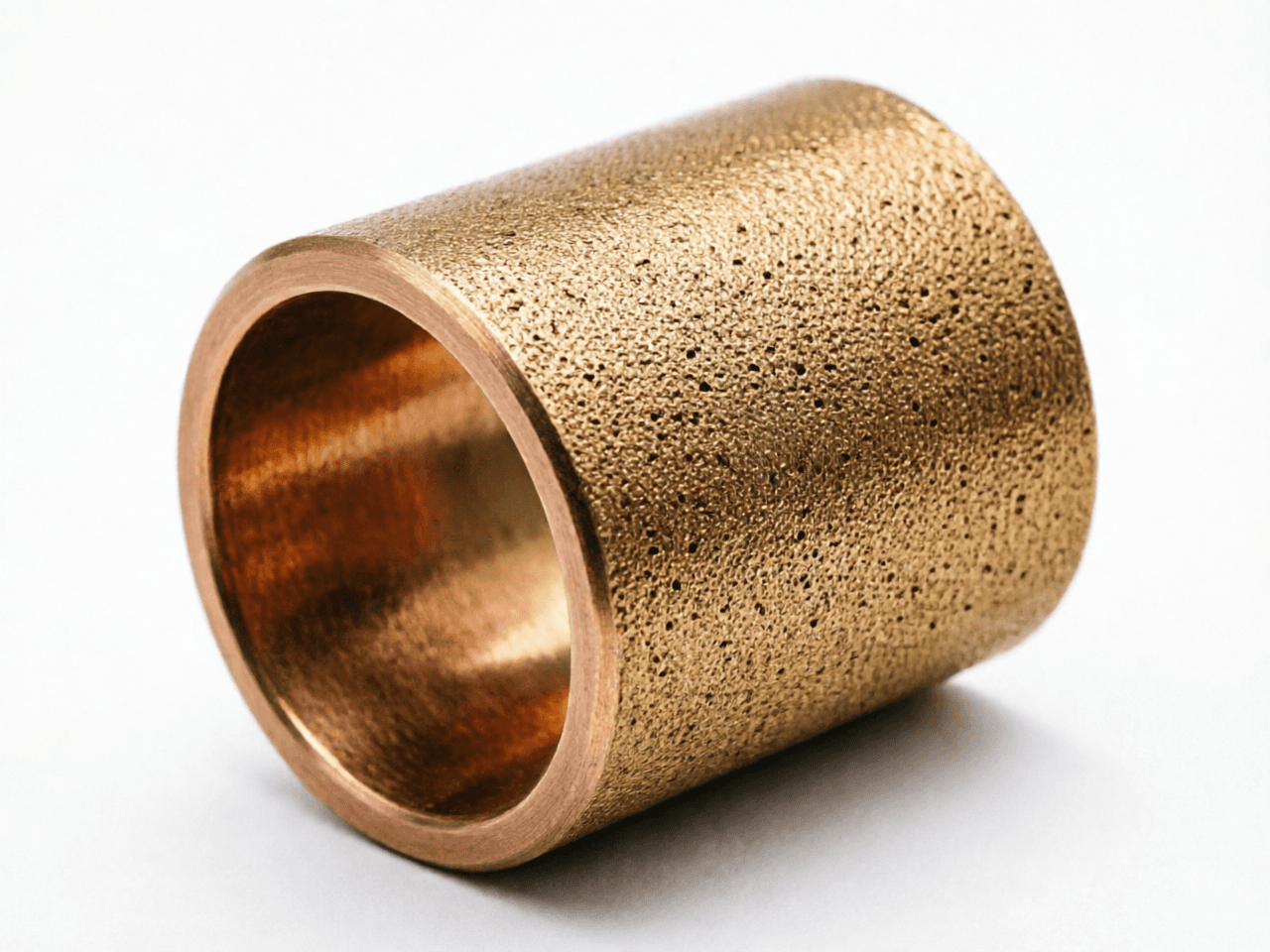

Powder Metallurgy Bronze Bearings
Oil-impregnated PM bronze bearings for maintenance-free operation in high-volume industrial assemblies — interconnected porosity supplies continuous lubrication with precise dimensional stability.
- Materials
- Oil-impregnated PM bronze
- Features
- Self-lubricating oil-impregnation, low friction and quiet operation, high wear and fatigue resistance, sleeves/flanges/thrust washers/custom forms, tight tolerances
- Application
- Industrial electric motors and pumps, low-noise household appliances, automotive actuators and precision linkages, heavy machinery and factory automation, aerospace micro-actuation systems.
Frequently Asked Questions
What materials and process are used for Powder Metallurgy Bronze Bearings?
Powder Metallurgy Bronze Bearings is made from Oil-impregnated PM bronze and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What tolerances can Powder Metallurgy Bronze Bearings hold?
Typical as-sintered dimensional tolerance is ±0.3–0.5% of the dimension. Tighter tolerances are achievable with secondary sizing or machining, agreed per part during quoting.
What is the MOQ and lead time for Powder Metallurgy Bronze Bearings?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
