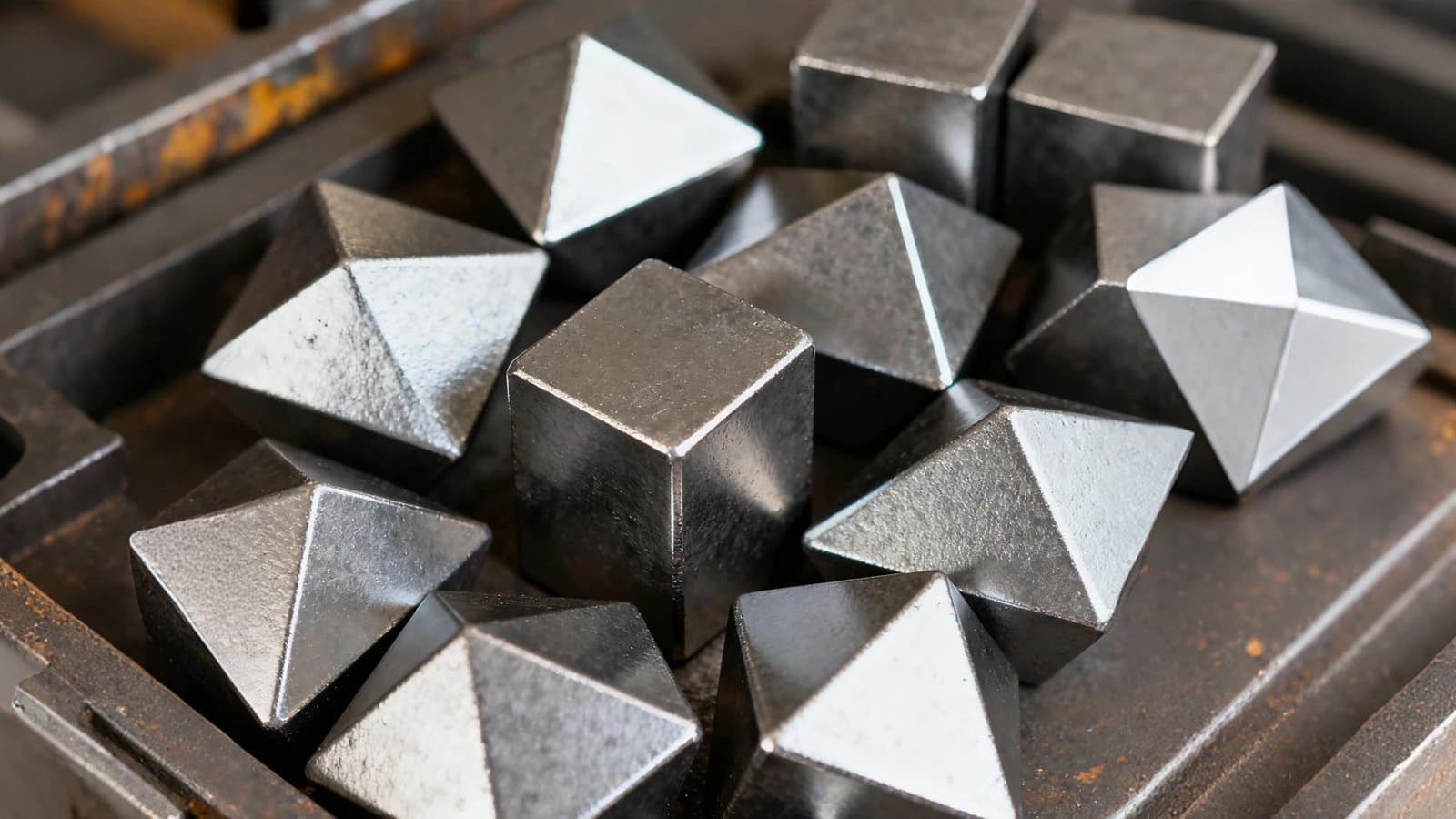

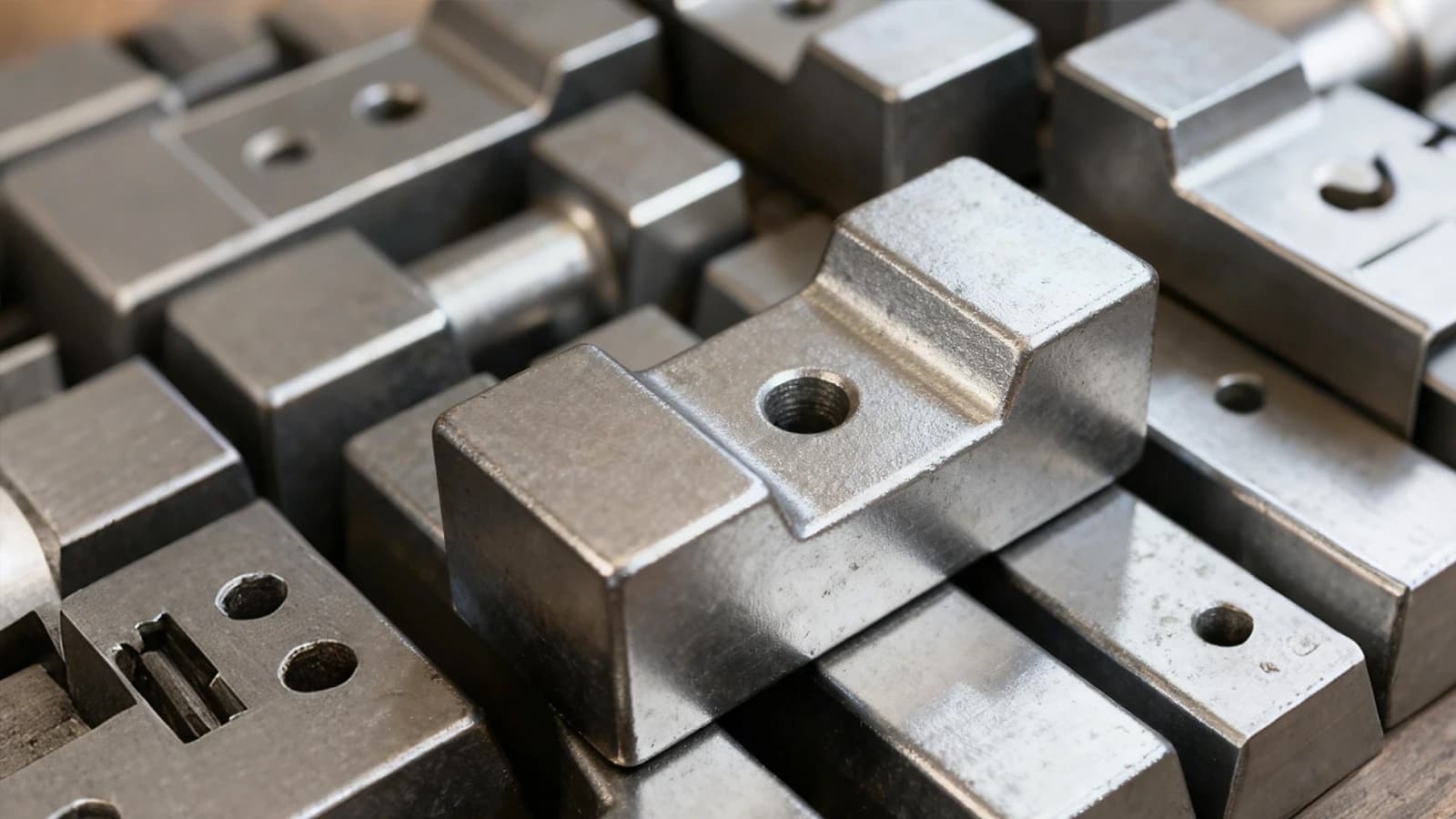

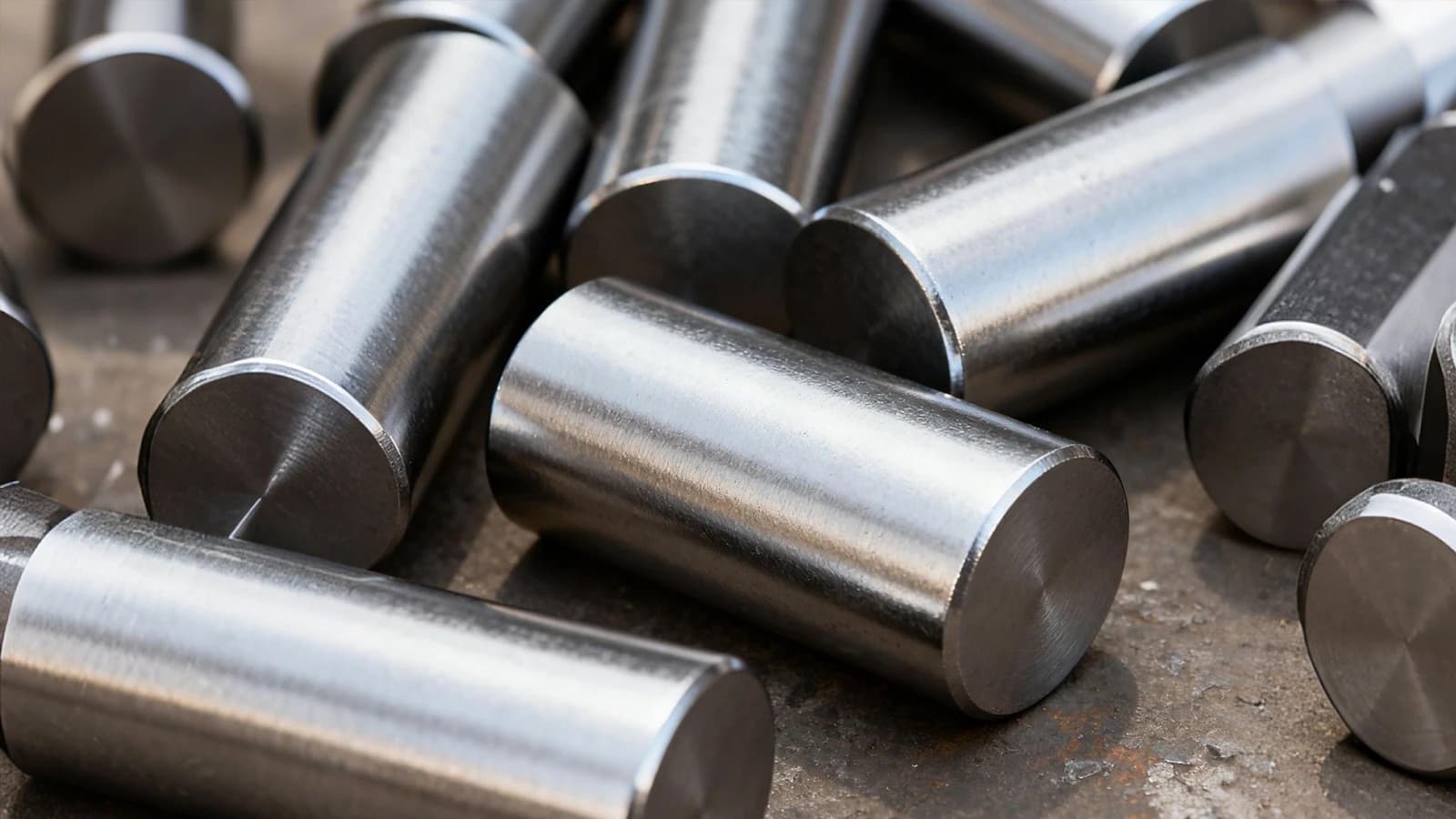

Non-magnetic Steel Weight
Non-magnetic steel weights for applications demanding exact mass distribution without magnetic interference — uniform density, minimal porosity and tight mass tolerances via PM/MIM processing.
- Materials
- Non-magnetic alloy steel (self-developed powders)
- Features
- No magnetic interference, high-precision MIM/PM tolerances, corrosion-resistant surface treatments, complex geometries with holes/slots/threaded inserts, batch-to-batch consistency
- Application
- Precision measurement instruments and load sensors, MRI and medical imaging devices, aerospace and defense components, robotics and precision actuators, industrial automation and balance systems.
Frequently Asked Questions
What materials and process are used for Non-magnetic Steel Weight?
Non-magnetic Steel Weight is made from Non-magnetic alloy steel (self-developed powders) and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What tolerances can Non-magnetic Steel Weight hold?
Typical as-sintered dimensional tolerance is ±0.3–0.5% of the dimension. Tighter tolerances are achievable with secondary sizing or machining, agreed per part during quoting.
What is the MOQ and lead time for Non-magnetic Steel Weight?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
