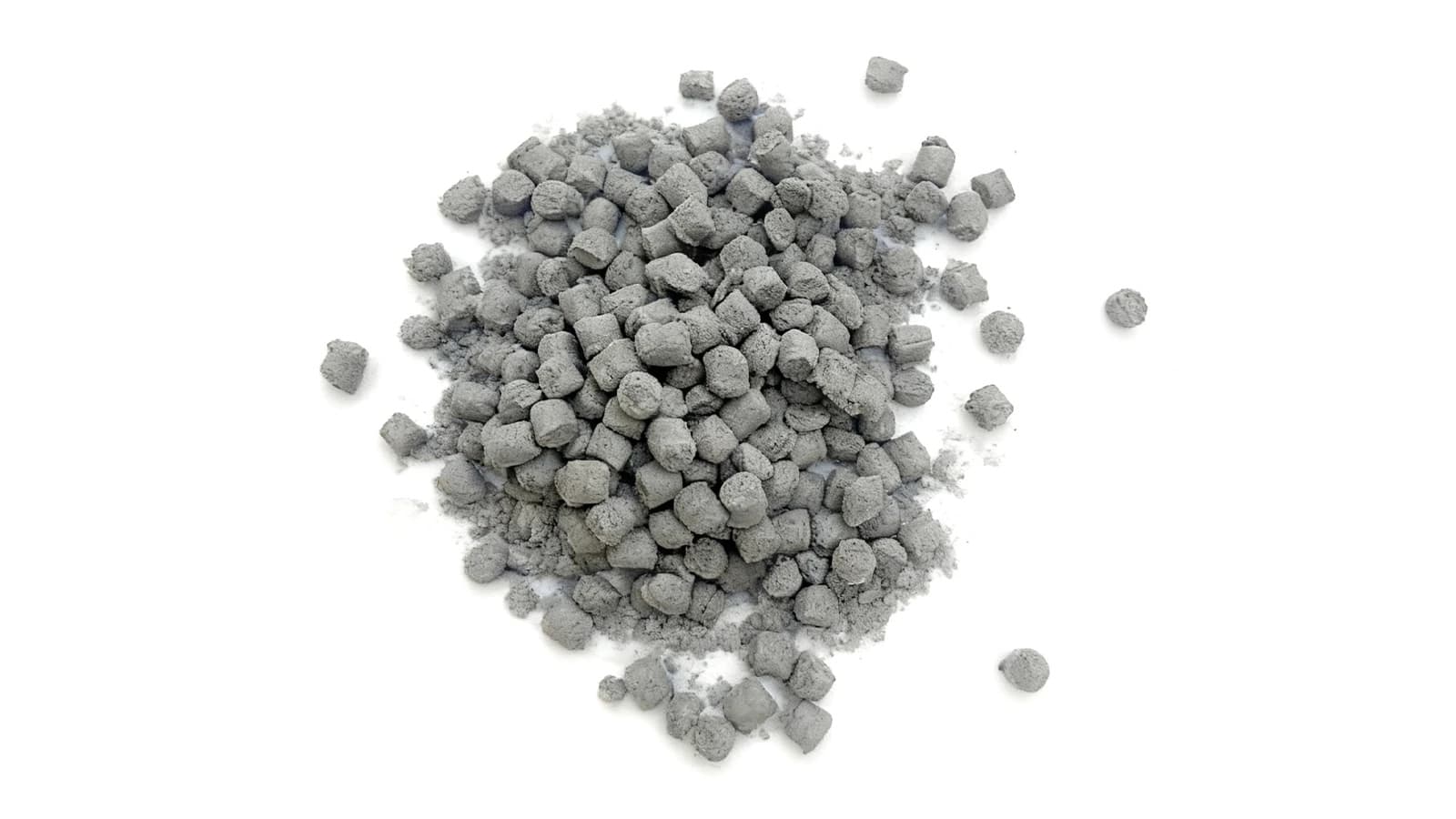

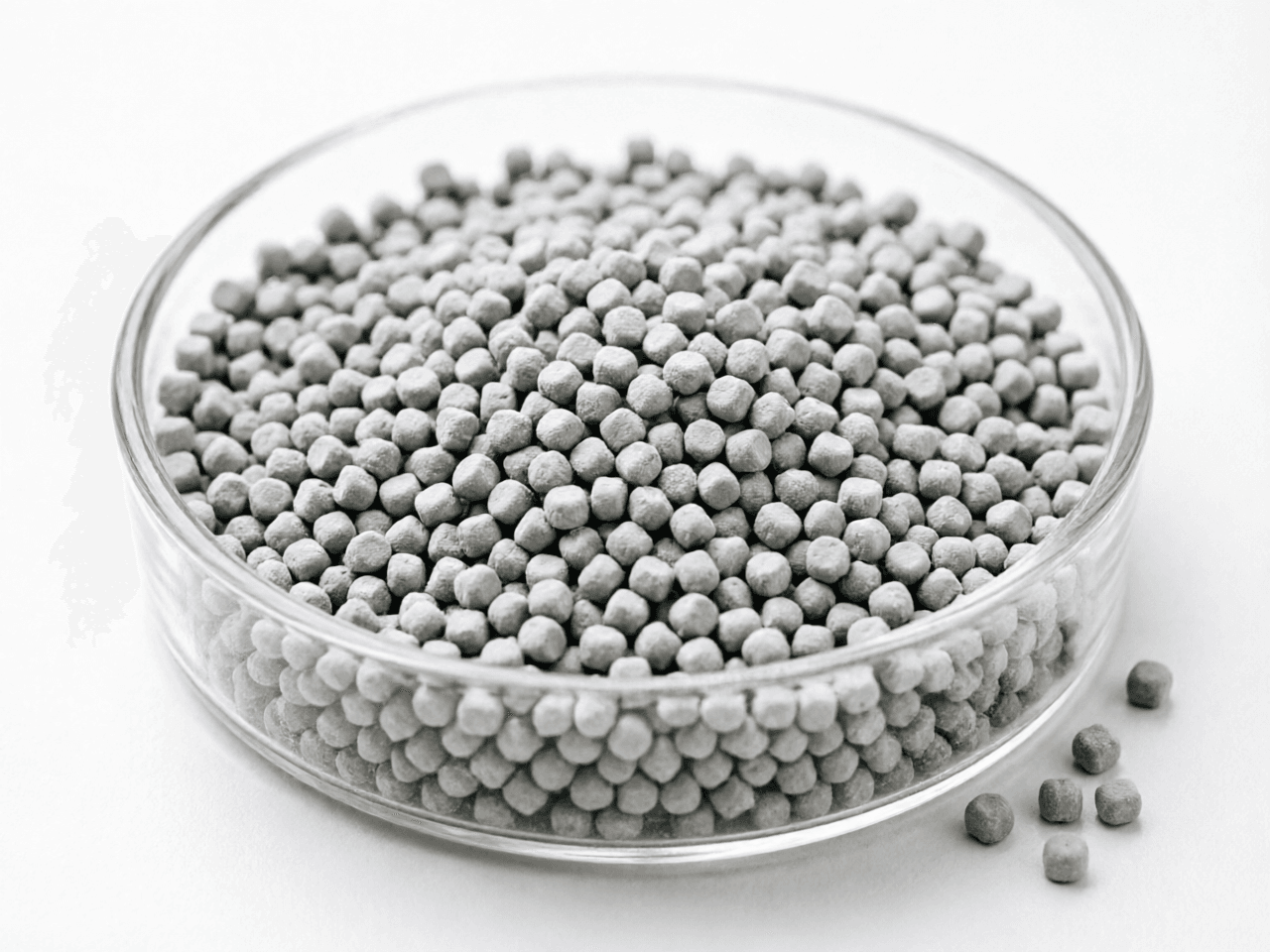

MIM Feedstock
Standard MIM feedstock formulated exclusively with NEWLIFE's in-house ultrafine Fe, Cu and Ni powders, delivering exceptional stability and consistency for high-volume manufacturing.
- Materials
- Low alloy steels (Fe-Ni), stainless steels (316L, 17-4PH), soft magnetic alloys
- Features
- Vertical integration, >96–98% relative density, consistent shrinkage, clean debinding, high green strength
- Application
- Consumer electronics hinges and brackets, automotive sensor housings and gearbox components, power tool gears, lock and hydraulic parts.
Specifications
| Parameter | Value |
|---|---|
| Sintered Density | ≥ 7.6 g/cm³ (Fe-Ni, ASTM B883) |
| Tensile Strength | 450–1100 MPa (heat treat dependent) |
| Surface Finish | < Ra 1.6 µm (as-sintered) |
| Powder Loading | 60–65 vol% |
| Particle Size | D50 < 10 µm (customizable) |
| Binder Type | Wax-polymer / POM (catalytic) |
Frequently Asked Questions
What is MIM Feedstock and how is its quality controlled?
MIM Feedstock is a metallurgy powder product (Low alloy steels (Fe-Ni), stainless steels (316L, 17-4PH), soft magnetic alloys). The key quality indicators are particle size distribution, particle shape and batch-to-batch consistency, which are controlled throughout production. Share your target specification and we will confirm the matching grade.
What are the key specifications of MIM Feedstock?
Typical specifications: Sintered Density: ≥ 7.6 g/cm³ (Fe-Ni, ASTM B883); Tensile Strength: 450–1100 MPa (heat treat dependent); Surface Finish: < Ra 1.6 µm (as-sintered). The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for MIM Feedstock?
MOQ starts at 1000 (unit of measure depends on the product form). Standard production lead time is about 7 days; the exact schedule is confirmed with the order.
