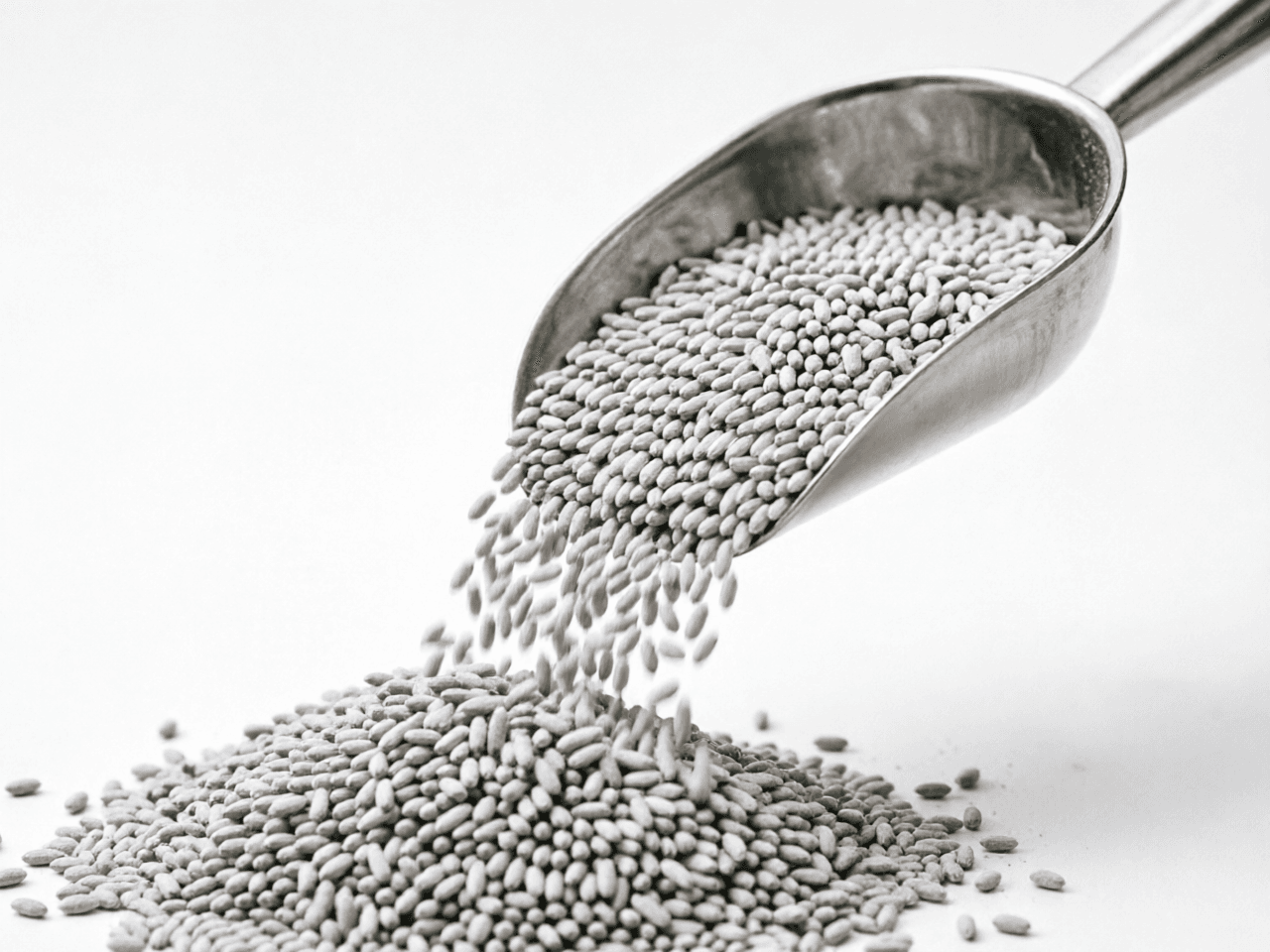

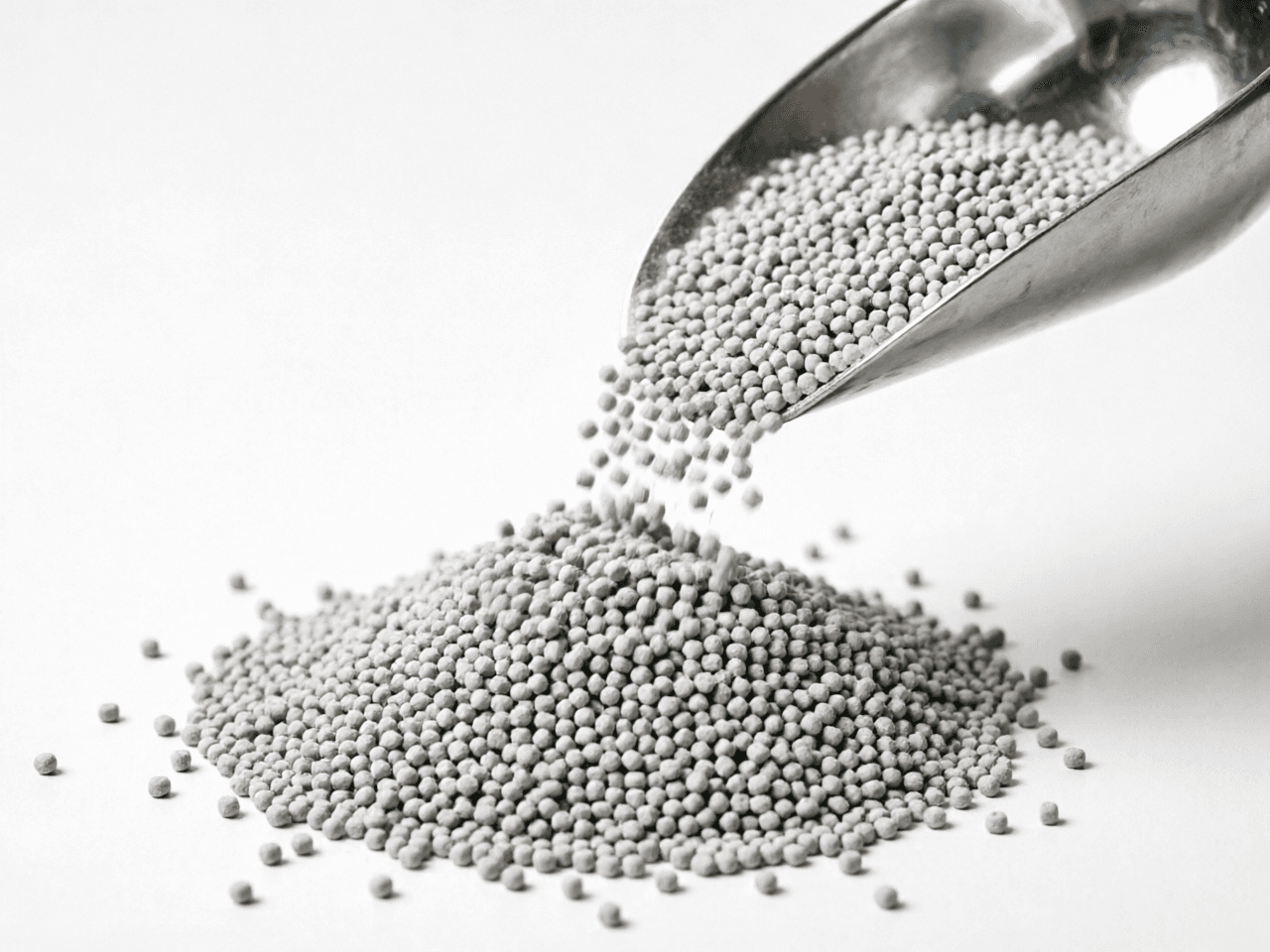

High Flowability MIM Feedstock
Flow-Pro high-flowability feedstock engineered for intricate, micro-sized and thin-walled MIM parts — low-viscosity binder plus spherical ultrafine powders fill features down to 0.2 mm at lower injection pressure.
- Materials
- Spherical ultrafine Fe/Ni/Cu powders, low-viscosity binder
- Features
- Exceptional rheology, thin-wall capability, reduced mold wear, +25% spiral flow length
- Application
- Medical device jaws and brackets, USB-C and fiber optic connectors, watch components and micro-gears, intricate heat sinks.
Specifications
| Parameter | Value |
|---|---|
| Melt Viscosity | < 100 Pa·s (@ molding temp) |
| Mold Temperature | 120–140 °C (typical) |
| Minimum Wall Thickness | 0.15 mm (geometry dependent) |
| Dimensional Stability | Excellent (low residual stress) |
| Flow Length | +25% vs standard feedstock (spiral flow test) |
Frequently Asked Questions
What is High Flowability MIM Feedstock and how is its quality controlled?
High Flowability MIM Feedstock is a metallurgy powder product (Spherical ultrafine Fe/Ni/Cu powders, low-viscosity binder). The key quality indicators are particle size distribution, particle shape and batch-to-batch consistency, which are controlled throughout production. Share your target specification and we will confirm the matching grade.
What are the key specifications of High Flowability MIM Feedstock?
Typical specifications: Melt Viscosity: < 100 Pa·s (@ molding temp); Mold Temperature: 120–140 °C (typical); Minimum Wall Thickness: 0.15 mm (geometry dependent). The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for High Flowability MIM Feedstock?
MOQ starts at 1000 (unit of measure depends on the product form). Standard production lead time is about 7 days; the exact schedule is confirmed with the order.
