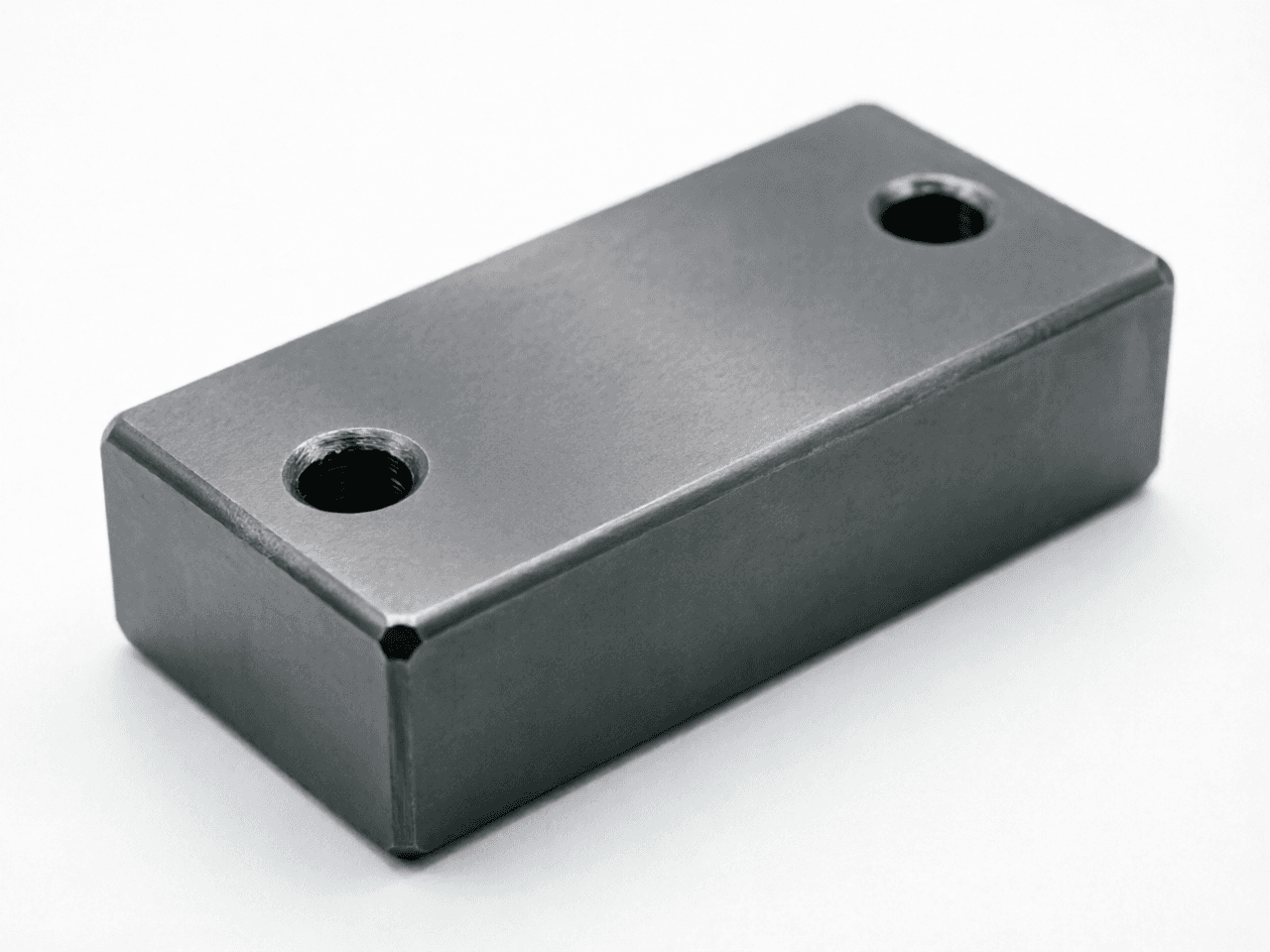

Tungsten Counterweight
Heavy tungsten alloy counterweights engineered for rotorcraft blade balancing — 17.5–18.2 g/cm³ density embedded in leading edges to modify inertia, suppress vibration and stabilize flight dynamics.
- Materials
- Heavy tungsten alloy
- Features
- Yield strength ≥550 MPa, impact toughness ≥15 J/cm², 100% ultrasonic & radiographic NDT, high cyclic fatigue tested
- Application
- Main rotor blade balancing, tail rotor systems, military aviation, commercial rotorcraft.
Specifications
| Parameter | Value |
|---|---|
| Material Type | Heavy Tungsten Alloy / 高比重钨合金 |
| Density Range | 17.5 – 18.2 g/cm³ |
| Yield Strength | ≥ 550 MPa |
| Impact Toughness | ≥ 15 J/cm² |
| Fatigue Limit | High cyclic fatigue tested / 通过高周疲劳测试 |
Frequently Asked Questions
What materials and process are used for Tungsten Counterweight?
Tungsten Counterweight is made from Heavy tungsten alloy and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What are the key specifications of Tungsten Counterweight?
Typical specifications: Material Type: Heavy Tungsten Alloy / 高比重钨合金; Density Range: 17.5 – 18.2 g/cm³; Yield Strength: ≥ 550 MPa. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Tungsten Counterweight?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
