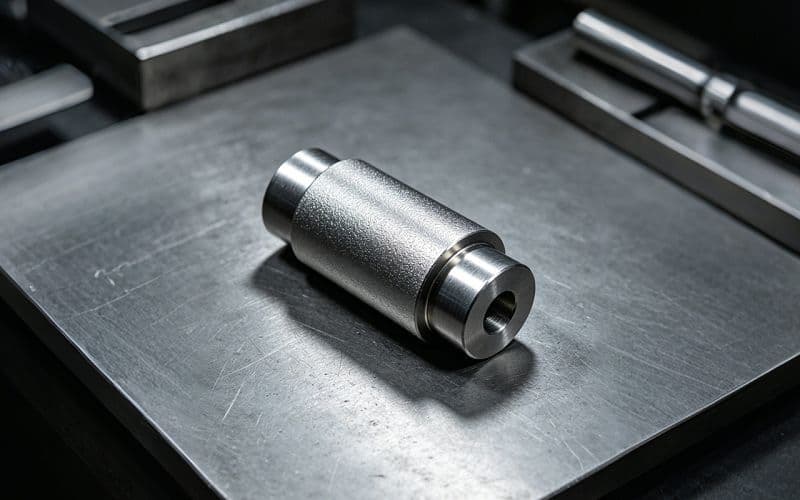

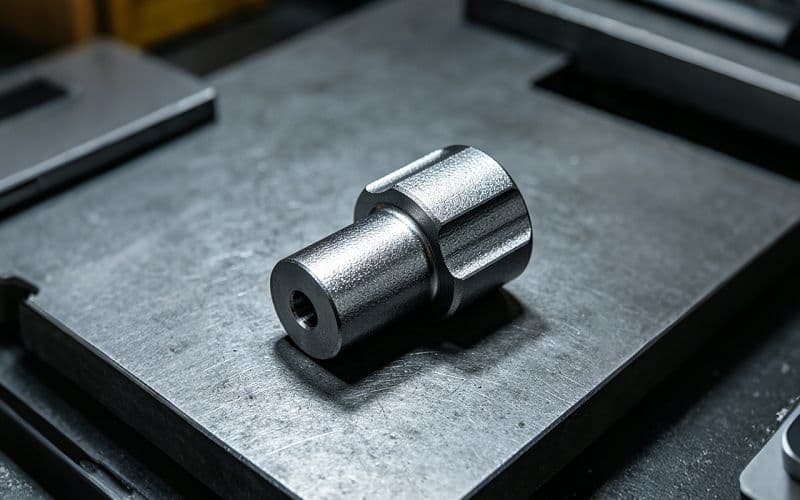

Tungsten Alloy Satellite Stabilization Counterweight
High-purity W-Ni-Fe stabilization mass for nadir-pointing booms and gravity-gradient configurations — 17.8–18.4 g/cm³, CVCM < 0.1% / TML < 1%, linear CTE 4.5–5.0 for decade-long orbital stability.
- Materials
- High-purity W-Ni-Fe
- Features
- Zero internal porosity, space-grade outgassing compliance, linear thermal stability, countersunk / t-slot / threaded mounting interfaces
- Application
- Low Earth Orbit (LEO) constellations, deep space exploration probes, navigational satellite systems.
Specifications
| Parameter | Value |
|---|---|
| Alloy Specification | High-Purity W-Ni-Fe |
| Sintering Process | High-Vacuum Liquid Phase |
| Density Range | 17.8 – 18.4 g/cm³ |
| Outgassing Level | CVCM < 0.1% / TML < 1% |
| CTE Tracking | Strictly Linear 4.5-5.0 |
Frequently Asked Questions
What materials and process are used for Tungsten Alloy Satellite Stabilization Counterweight?
Tungsten Alloy Satellite Stabilization Counterweight is made from High-purity W-Ni-Fe and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What are the key specifications of Tungsten Alloy Satellite Stabilization Counterweight?
Typical specifications: Alloy Specification: High-Purity W-Ni-Fe; Sintering Process: High-Vacuum Liquid Phase; Density Range: 17.8 – 18.4 g/cm³. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Tungsten Alloy Satellite Stabilization Counterweight?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
