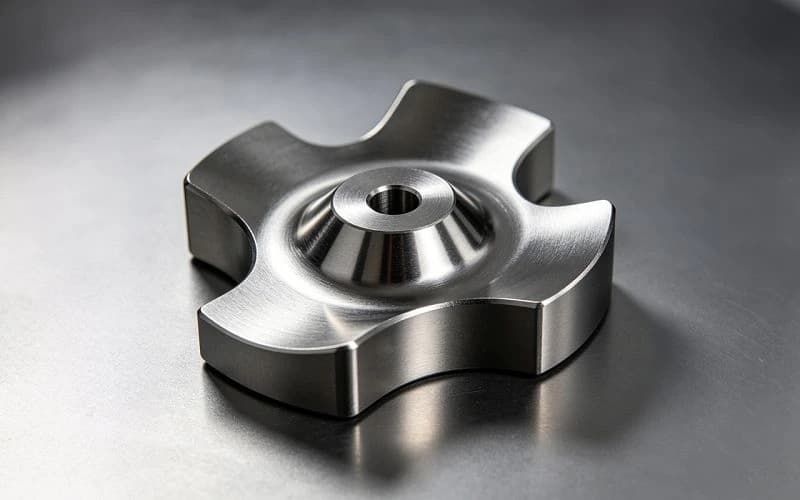

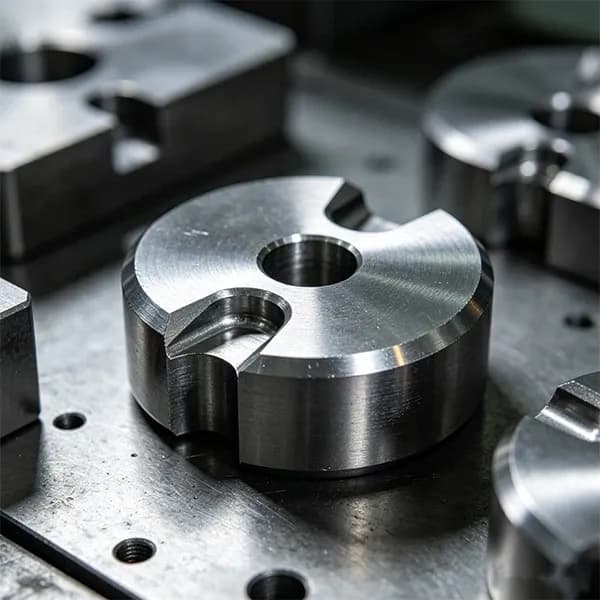

Tungsten Alloy Missile Guidance System Counterweight
Class 3 heavy alloy inertial stabilization block for guidance electronics and seeker heads — 18.0–18.5 g/cm³, ≥ 800 MPa tensile strength, ISO G1.0 dynamic balancing, non-magnetic W-Ni-Cu variant available.
- Materials
- Class 3 heavy alloy; non-magnetic W-Ni-Cu available
- Features
- Exceptional G-shock endurance, ISO G1.0 compliant balancing, electromagnetic neutrality around optical sensors, multi-cavity high-volume tooling
- Application
- Tactical strike missiles, anti-aircraft defense systems, precision-guided munitions (PGMs).
Specifications
| Parameter | Value |
|---|---|
| Alloy Class | Class 3 Heavy Alloy |
| Density Range | 18.0 – 18.5 g/cm³ |
| Tensile Strength | ≥ 800 MPa |
| Dynamic Balancing | ISO G1.0 Compliant |
| Magnetic Properties | Available in Non-Magnetic W-Ni-Cu |
Frequently Asked Questions
What materials and process are used for Tungsten Alloy Missile Guidance System Counterweight?
Tungsten Alloy Missile Guidance System Counterweight is made from Class 3 heavy alloy; non-magnetic W-Ni-Cu available and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What are the key specifications of Tungsten Alloy Missile Guidance System Counterweight?
Typical specifications: Alloy Class: Class 3 Heavy Alloy; Density Range: 18.0 – 18.5 g/cm³; Tensile Strength: ≥ 800 MPa. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Tungsten Alloy Missile Guidance System Counterweight?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
