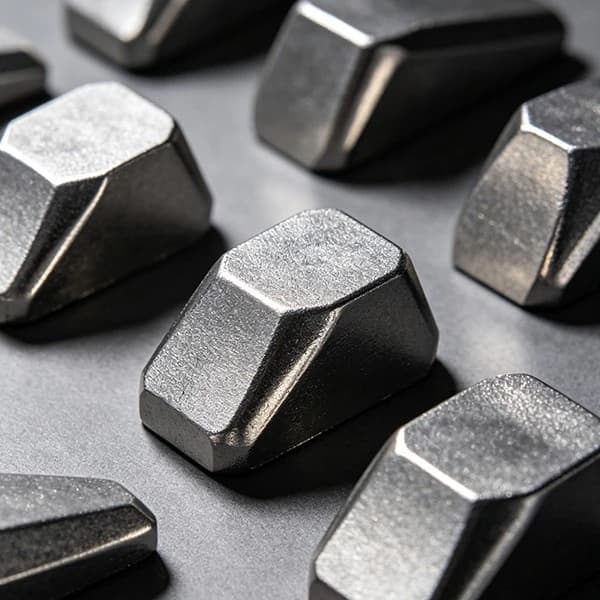

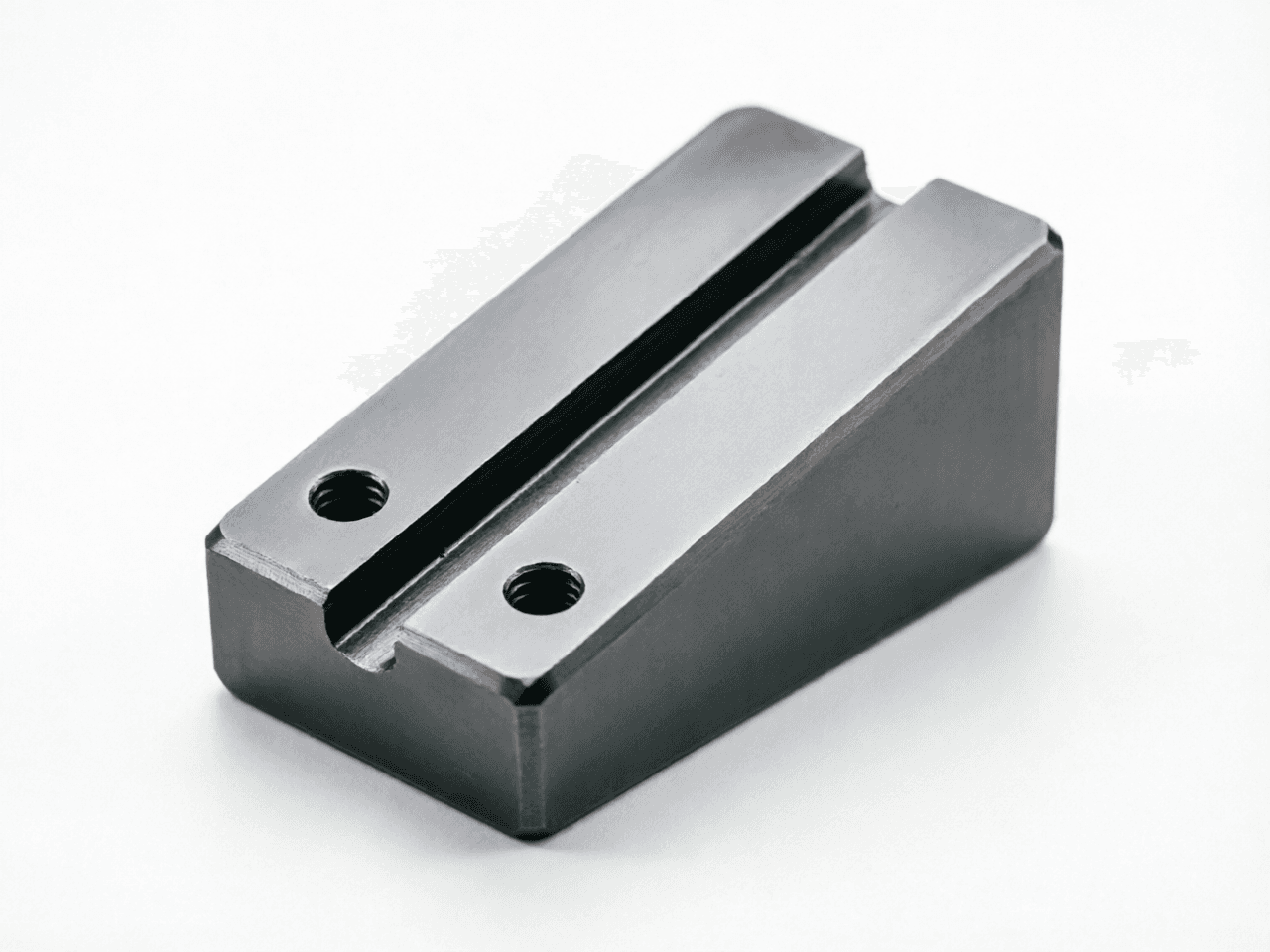

Tungsten Alloy Aircraft Tailplane Counterweight
Class 1 heavy W-alloy empennage counterweight for horizontal and vertical tailplanes — 17.0–18.0 g/cm³, ≥ 750 MPa tensile strength and cadmium-free plating tested to 500 h salt spray against galvanic corrosion.
- Materials
- Class 1 heavy W-alloy
- Features
- High-tonnage multi-axial hydraulic compaction, slim profiles for thin tailplane skins, 12–18% elongation, cadmium-free zinc / nickel plating
- Application
- Commercial airliner horizontal stabilizers, military fighter vertical tailplanes, UAV airframes, business aviation empennage tuning.
Specifications
| Parameter | Value |
|---|---|
| Alloy Grade | Class 1 Heavy W-Alloy |
| Density Options | 17.0 – 18.0 g/cm³ |
| Tensile Strength | ≥ 750 MPa |
| Elongation Range | ≥ 12% – 18% |
| Anti-Corrosion Finish | Cadmium-Free Zinc / Nickel Plating |
Frequently Asked Questions
What materials and process are used for Tungsten Alloy Aircraft Tailplane Counterweight?
Tungsten Alloy Aircraft Tailplane Counterweight is made from Class 1 heavy W-alloy and is formed by MIM/PM (metal injection molding / powder metallurgy) near-net-shape and sintered to a relative density of ≥ 98%, which keeps mechanical properties close to wrought material.
What are the key specifications of Tungsten Alloy Aircraft Tailplane Counterweight?
Typical specifications: Alloy Grade: Class 1 Heavy W-Alloy; Density Options: 17.0 – 18.0 g/cm³; Tensile Strength: ≥ 750 MPa. The full parameter list is in the specifications table on this page; custom requirements can be discussed against your drawing.
What is the MOQ and lead time for Tungsten Alloy Aircraft Tailplane Counterweight?
MOQ is 1000 pcs. Mold lead time is about 20 days (mold fee typically RMB 20–40k depending on part geometry), and production lead time is about 7 days once the mold is validated; secondary processing adds 3–5 days.
